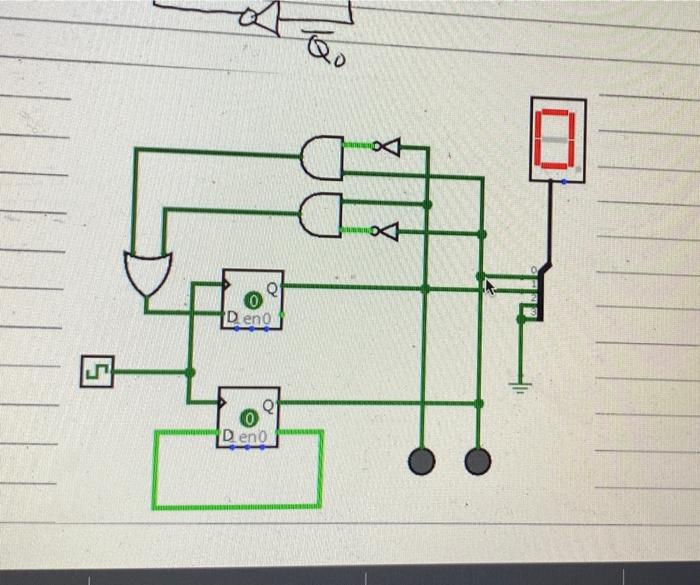

Design of a Synchronous Logic Circuit using D-F/F that counts repeatly from 0,1,2,3,0,1,2,3,... when an input X=1, and counts down when X=0,3,2,1,0,3,2,1,0.... Attached is some extra help.
