Hello Tutor,
Please follow all the steps; please do not forget to draw
the "prime Implicants table".
Thank you so much for your help. I will leave a Thumbs Up!
Hello Tutor Please Follow All The Steps Please Do Not Forget To Draw The Prime Implicants Table Thank You So Much F 1 (329.47 KiB) Viewed 36 times

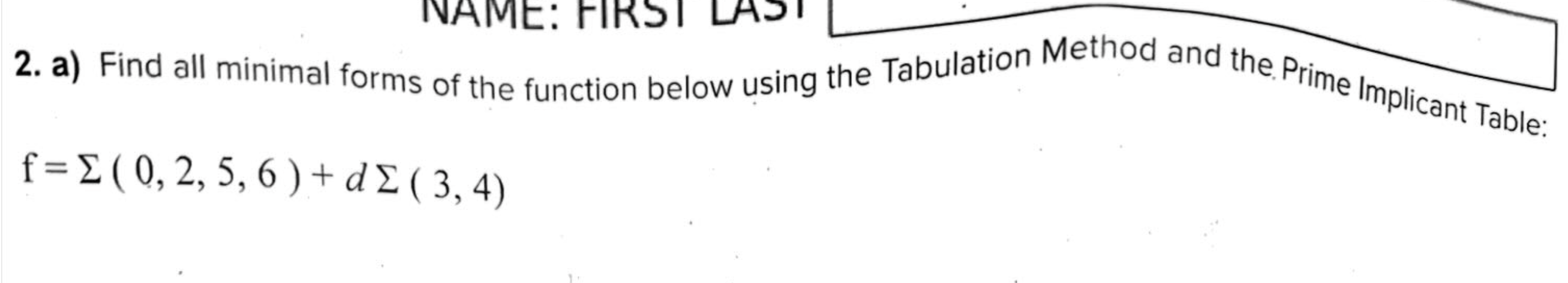

2. a) Find all minimal forms of the function below using the Tabulation Method and the Prime Implicant Table: FIRS f=Σ(0, 2, 5, 6) + dΣ (3, 4)
b) Now use a K-Map to confirm your results in 2.a).
