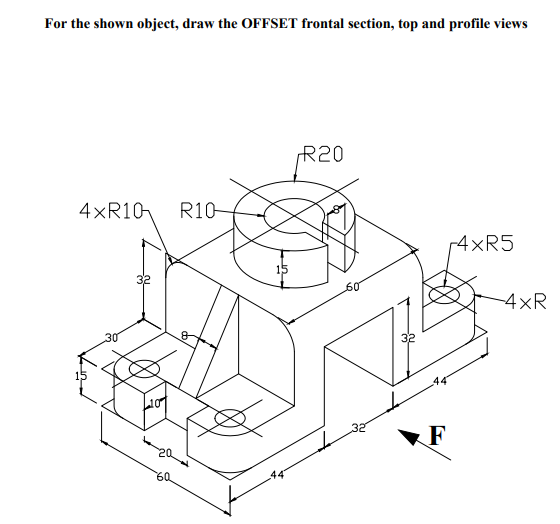

For the shown object, draw the OFFSET frontal section, top and profile views R20 4xR10h R10- 14xR5 15 60 4xR 30 8 32 F 6
