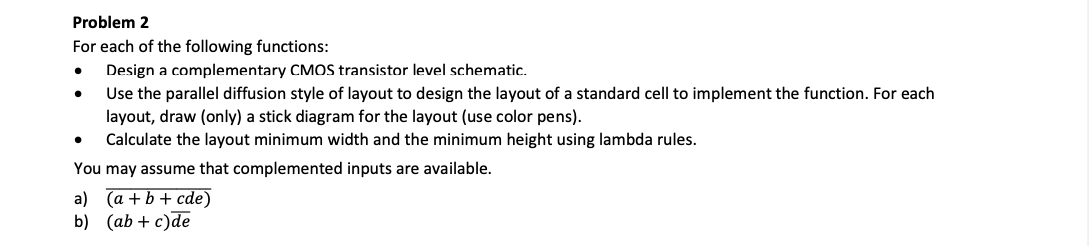

. . Problem 2 For each of the following functions: Design a complementary CMOS transistor level schematic. Use the parallel diffusion style of layout to design the layout of a standard cell to implement the function. For each layout, draw (only) a stick diagram for the layout (use color pens). Calculate the layout minimum width and the minimum height using lambda rules. You may assume that complemented inputs are available. a) (a + b + cde) b) (ab + c)de .
