QUESTION 10 Here is the network architecture of a company: 1. Explain which firewall will block an attack originated fro

[answerhappygod]

Question 10 Here Is The Network Architecture Of A Company 1 Explain Which Firewall Will Block An Attack Originated Fro 1 (182.67 KiB) Viewed 16 times

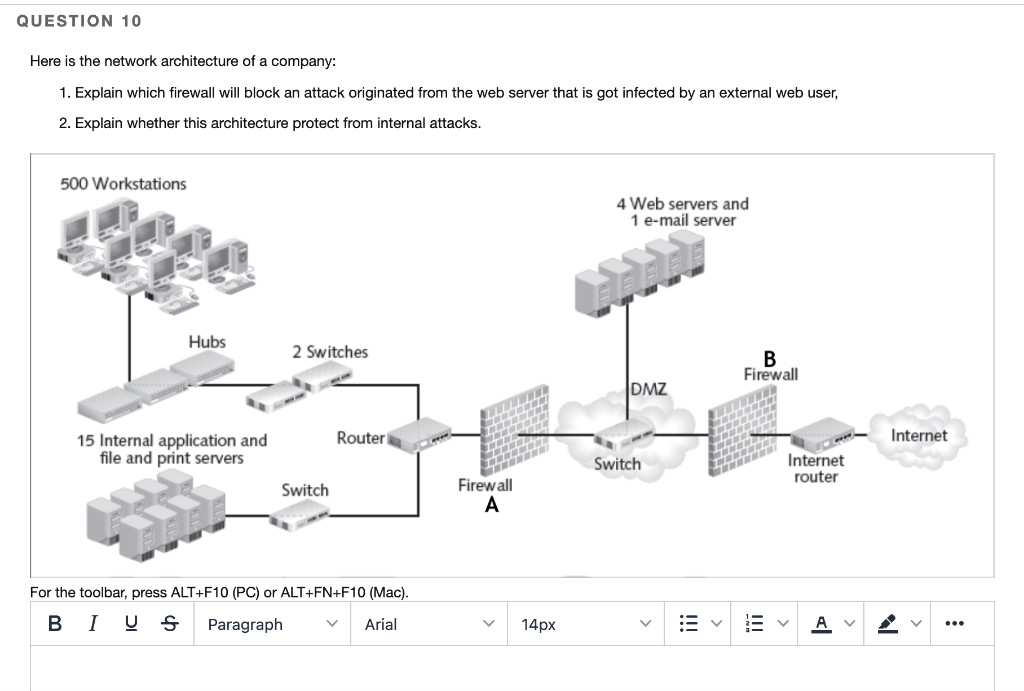

QUESTION 10 Here is the network architecture of a company: 1. Explain which firewall will block an attack originated from the web server that is got infected by an external web user, 2. Explain whether this architecture protect from internal attacks. 500 Workstations 4 Web servers and 1 e-mail server Hubs 2 Switches B Firewall DMZ Router Internet 15 Internal application and file and print servers Switch Internet router Switch Firewall A For the toolbar, press ALT+F10 (PC) or ALT+FN+F10 (Mac). B I U Ꭶ Paragraph Arial V V 14px < 日 А у V
