IT: For the circuit shown in the figure, write a) The Kirchhoff current equation for the bode labeled A w 100 150 V 30 V

Post by answerhappygod »

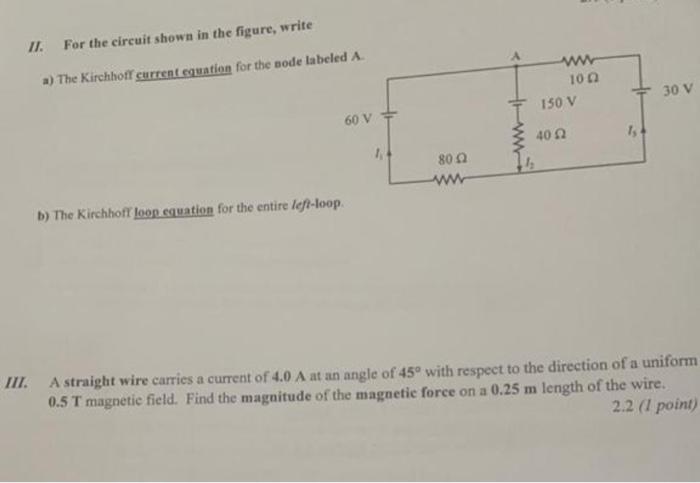

It For The Circuit Shown In The Figure Write A The Kirchhoff Current Equation For The Bode Labeled A W 100 150 V 30 V 1
It For The Circuit Shown In The Figure Write A The Kirchhoff Current Equation For The Bode Labeled A W 100 150 V 30 V 1 (19.83 KiB) Viewed 63 times
IT: For the circuit shown in the figure, write a) The Kirchhoff current equation for the bode labeled A w 100 150 V 30 V 60 V 40 Ω 1. 8Ο Ω ww b) The Kirchhoff loop equation for the entire left-loop MIT. A straight wire carries a current of 4.0 A at an angle of 45° with respect to the direction of a uniform 0.5 T magnetic field. Find the magnitude of the magnetic force on a 0.25 m length of the wire. 2.2 (1 point)
