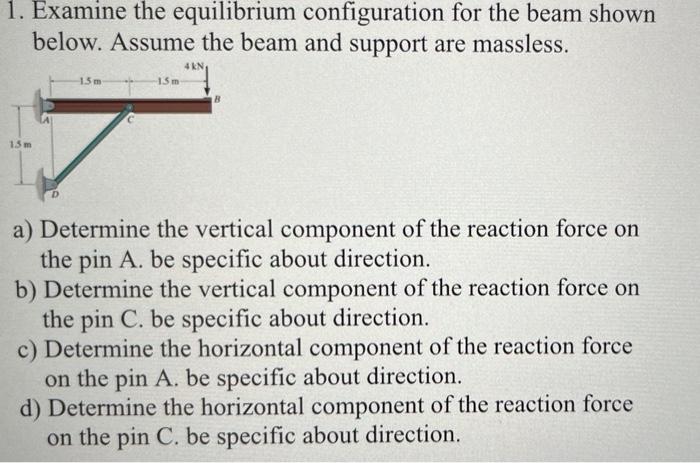

1. Examine the equilibrium configuration for the beam shown below. Assume the beam and support are massless. 4 KN 15 m 1.5 m B 1.5 m T D a) Determine the vertical component of the reaction force on the pin A. be specific about direction. b) Determine the vertical component of the reaction force on the pin C. be specific about direction. c) Determine the horizontal component of the reaction force on the pin A. be specific about direction. d) Determine the horizontal component of the reaction force on the pin C. be specific about direction.
