2. (20 points) Label the currents for the circuit below. Then write out the loop and junction equations using Kirchhoff'

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

2. (20 points) Label the currents for the circuit below. Then write out the loop and junction equations using Kirchhoff'

Post by answerhappygod »

2 20 Points Label The Currents For The Circuit Below Then Write Out The Loop And Junction Equations Using Kirchhoff 1
2 20 Points Label The Currents For The Circuit Below Then Write Out The Loop And Junction Equations Using Kirchhoff 1 (30.2 KiB) Viewed 46 times

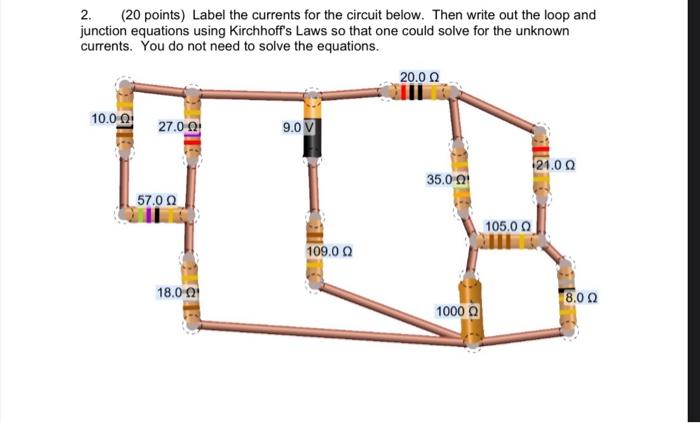

2. (20 points) Label the currents for the circuit below. Then write out the loop and junction equations using Kirchhoff's Laws so that one could solve for the unknown currents. You do not need to solve the equations. 20.00 10.00 27.0 Ω 9.07 cle 21.00 35.0 91 57.00 105.0Ω 109.0Ω 18.00 8.00 1000
