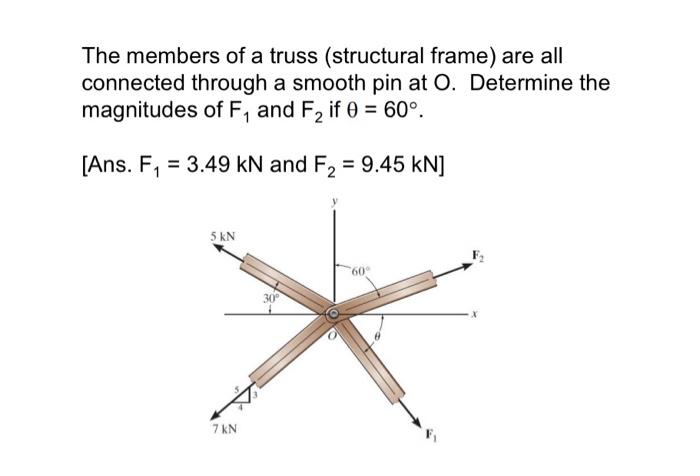

The members of a truss (structural frame) are all connected through a smooth pin at O. Determine the magnitudes of F, and F2 if 0 = 60°. [Ans. F1 = 3.49 kN and F2 = 9.45 kN] 5 KN 60° 30P 7 KN

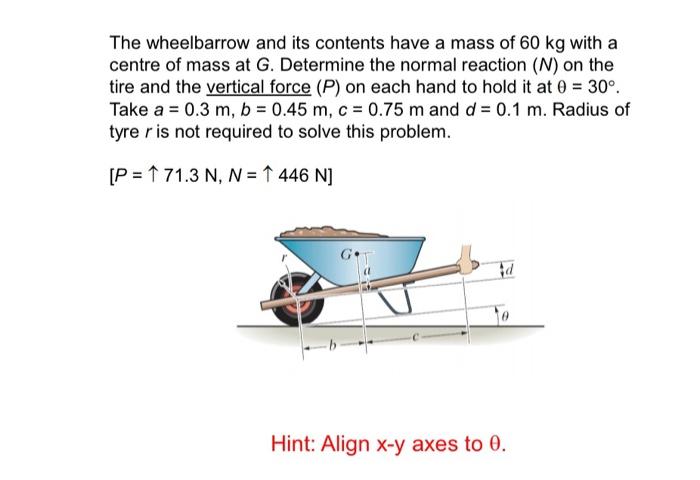

The wheelbarrow and its contents have a mass of 60 kg with a centre of mass at G. Determine the normal reaction (N) on the tire and the vertical force (P) on each hand to hold it at 0 = 30°. Take a = 0.3 m, b = 0.45 m, c = 0.75 m and d = 0.1 m. Radius of tyre r is not required to solve this problem. [P = 1 71.3 N, N = 1 446 N] 10 Hint: Align x-y axes to 0.
