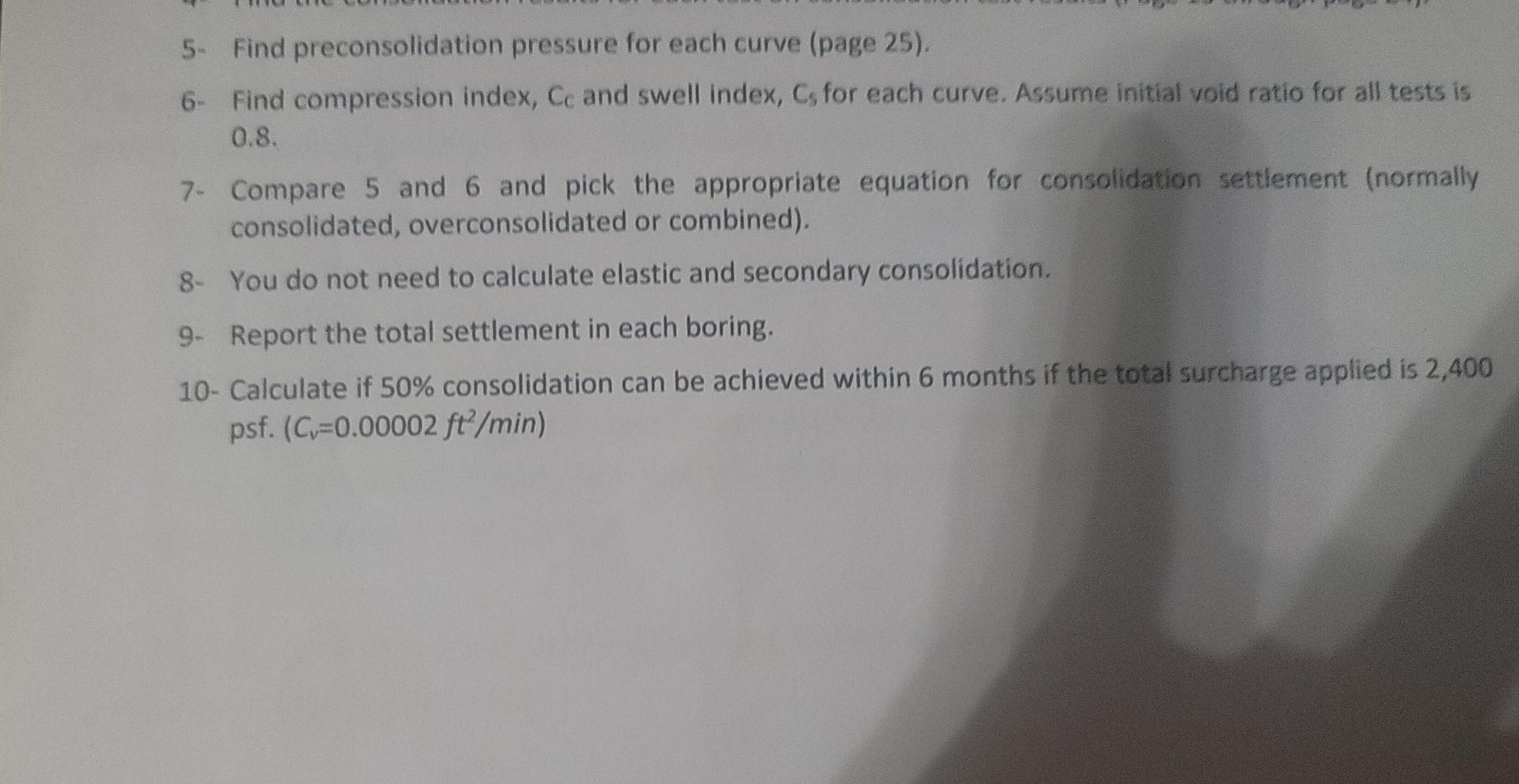

5- Find preconsolidation pressure for each curve (page 25). 6- Find compression index, Cc and swell index, Cs for each curve. Assume initial void ratio for all tests is 0.8. 7- Compare 5 and 6 and pick the appropriate equation for consolidation settlement (normally consolidated, overconsolidated or combined). 8- You do not need to calculate elastic and secondary consolidation. 9. Report the total settlement in each boring. 10- Calculate if 50% consolidation can be achieved within 6 months if the total surcharge applied is 2,400 psf. (C =0.00002 ft/min)

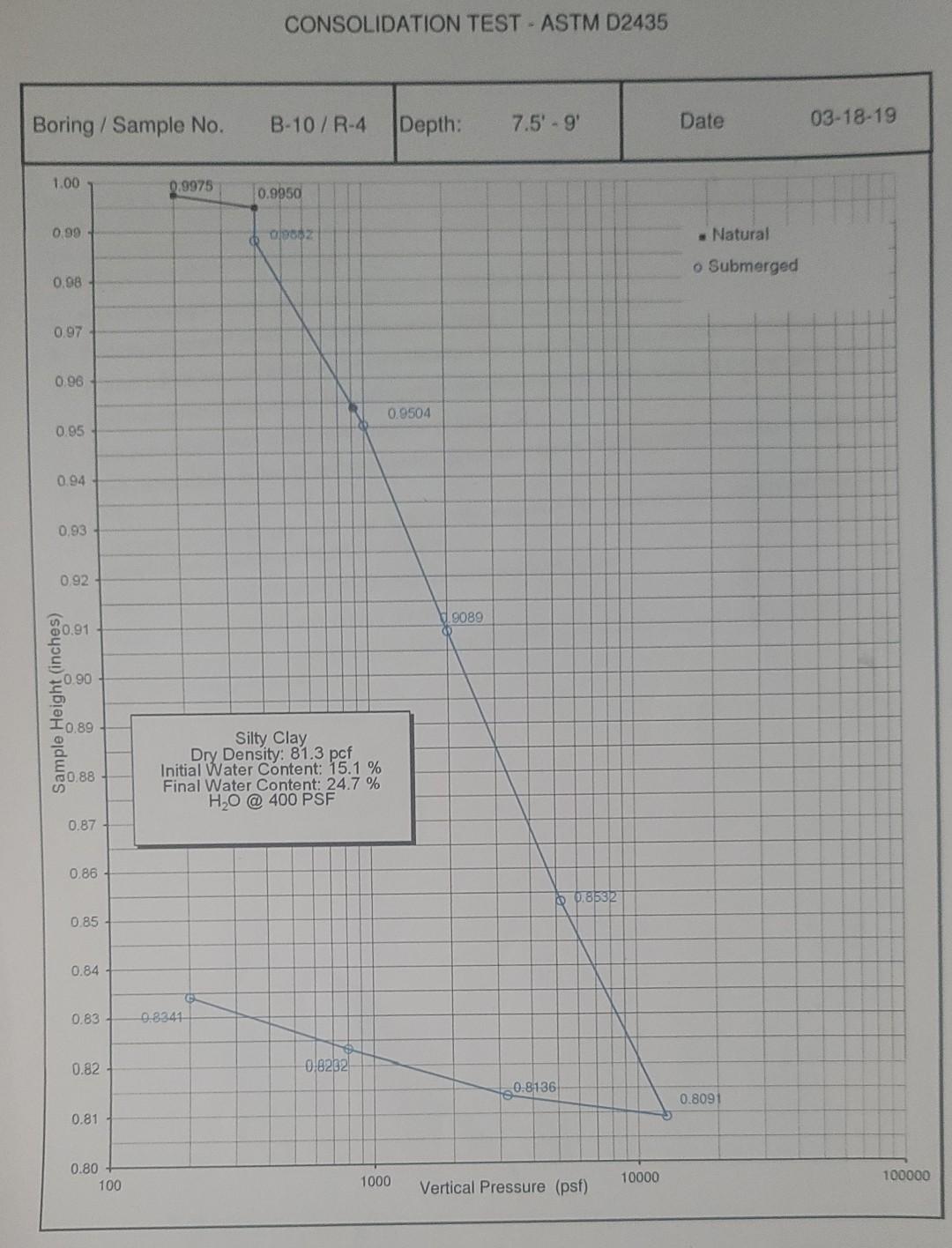

CONSOLIDATION TEST - ASTM D2435 Boring/Sample No. B-10/R-4 Depth: 7.5'-9' Date 03-18-19 1.00 0.9975 0.9950 0.99 cb 0902 Natural o Submerged 0.98 0.97 0.96 0.9504 0.95 0.94 0.93 0.92 9089 $0.91 91 0.90 Sample Height (inches) 10.89 30.88 Silty Clay Dry Density: 81.3 pcf Initial Water Content: 15.1 % Final Water Content: 24.7 % HO @ 400 PSF 0.87 0.86 0.8532 0.85 0.84 0.83 0.8341 0.82 08262 0.8136 0.8091 0.81 0.80 100 1000 10000 100000 Vertical Pressure (psf)
