Four batteries & - 18 V. & = 24 V. & 6V &4 = 36 V, with internal resistances 71 =1.12=22 r3 = 1 and 4 3Ω are connected t

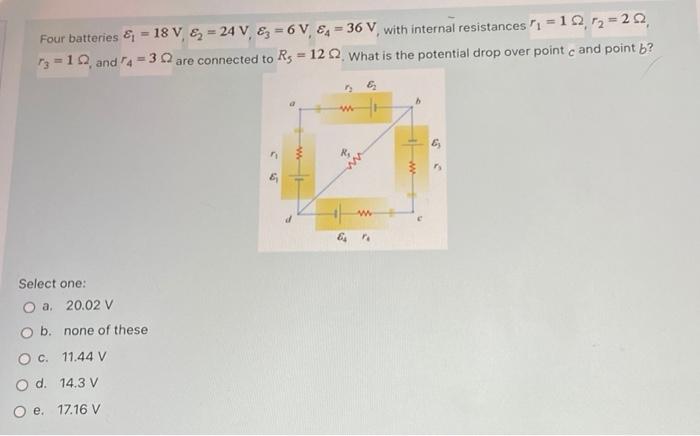

Four batteries & - 18 V. & = 24 V. & 6V &4 = 36 V, with internal resistances 71 =1.12=22 r3 = 1 and 4 3Ω are connected to Rs = 12 2. What is the potential drop over point c and point b? w C Select one: O a 20.02 V O b. none of these O c. 11.44 V O d. 14.3 V O e. 17.16 V
