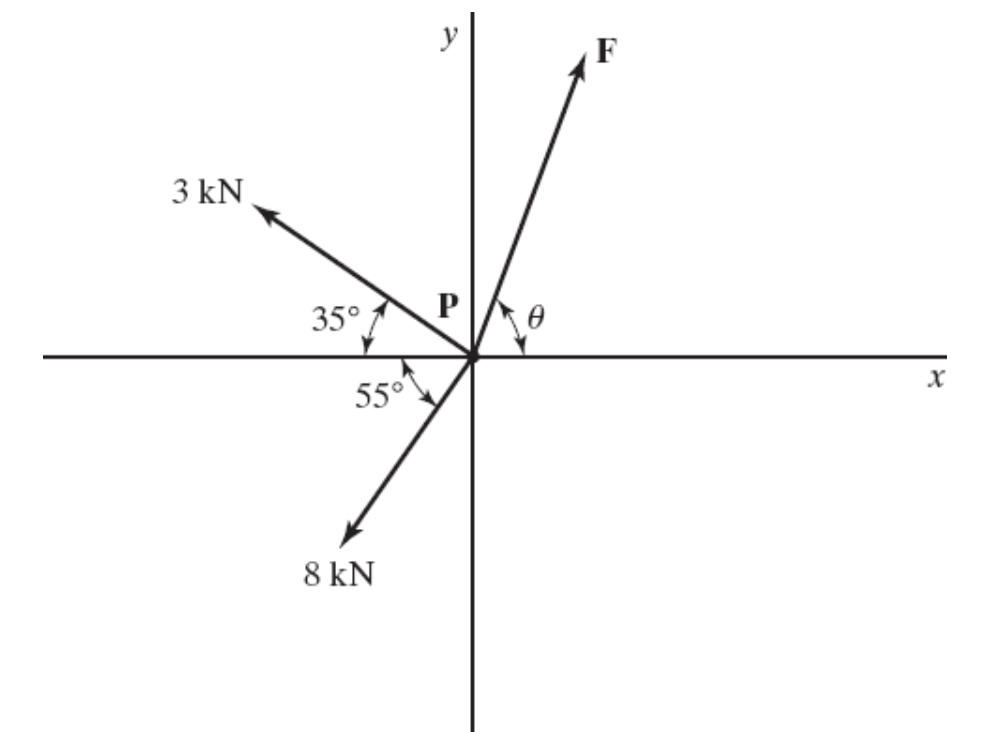

Find the magnitude of the force F and its direction (theta) so
that the particle P is in equilibrium with the two other forces
shown in the diagram below. Report your answers with proper units
and with two significant digits for both magnitude and
direction.
Find The Magnitude Of The Force F And Its Direction Theta So That The Particle P Is In Equilibrium With The Two Other 1 (48.63 KiB) Viewed 61 times
Possible Options:
Magnitude = 7549N = 7.5 kN Direction = 14.33 = 14 degrees
(theta)
Magnitude = 8544N = 8.5 kN Direction = 34.4 = 34 degrees
(theta)
Magnitude = 6444N = 6.4 kN Direction = 24.43 = 24 degrees
(theta)
Magnitude = 9545N = 9.5 kN Direction = 64.45 = 64 degrees
(theta)
y F 3 kN 35° P ө х 55° 8 kN
