resistor and the current in each resistor. Report your answers with
proper units and with 2 digits to the right of the decimal
point.

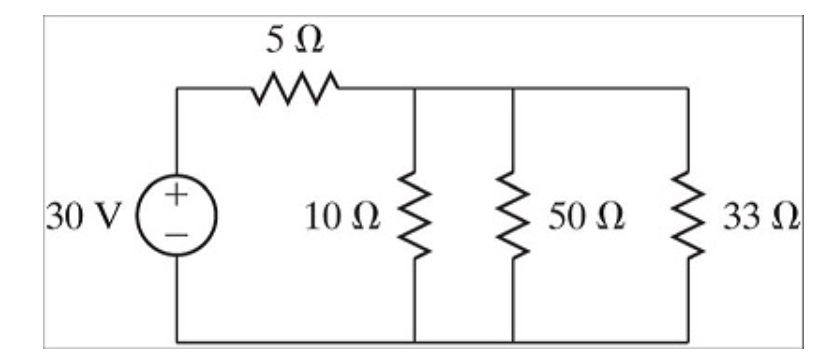

- For The Dc Circuit Shown Below Find The Voltage Across Each Resistor And The Current In Each Resistor Report Your Answ 1 (65.39 KiB) Viewed 64 times
For 5 ohm resistor: V = 22.35V and I = 1.53A
For 10 ohm resistor: V = 27.05V and I = 2.22A
For 50 ohm resistor: V = 27.05V and I = 1.14A
For 33 ohm resistor: V = 27.05V and I = 1.22A
For 5 ohm resistor: V = 32.83V and I = 3.54A
For 10 ohm resistor: V = 37.11V and I = 2.71A
For 50 ohm resistor: V = 37.11V and I = 1.54A
For 33 ohm resistor: V = 37.11V and I = 6.32A
For 5 ohm resistor: V = 2.58V and I = 4.17A
For 10 ohm resistor: V = 7.11V and I = 3.32A
For 50 ohm resistor: V = 7.11V and I = 5.14A
For 33 ohm resistor: V = 7.11V and I = 3.92A
For 5 ohm resistor: V = 12.85V and I = 2.57A
For 10 ohm resistor: V = 17.15V and I = 1.72A
For 50 ohm resistor: V = 17.15V and I = 0.34A
For 33 ohm resistor: V = 17.15V and I = 0.52A
5 Ω w 30 V + 1 10 Ω 50 Ω 33 Ω
