Wave from a wire antenna = Points:3 An electromagnetic wave from a wire antenna travels (from the reader) toward the pla

[answerhappygod]

Wave From A Wire Antenna Points 3 An Electromagnetic Wave From A Wire Antenna Travels From The Reader Toward The Pla 1 (124.61 KiB) Viewed 74 times

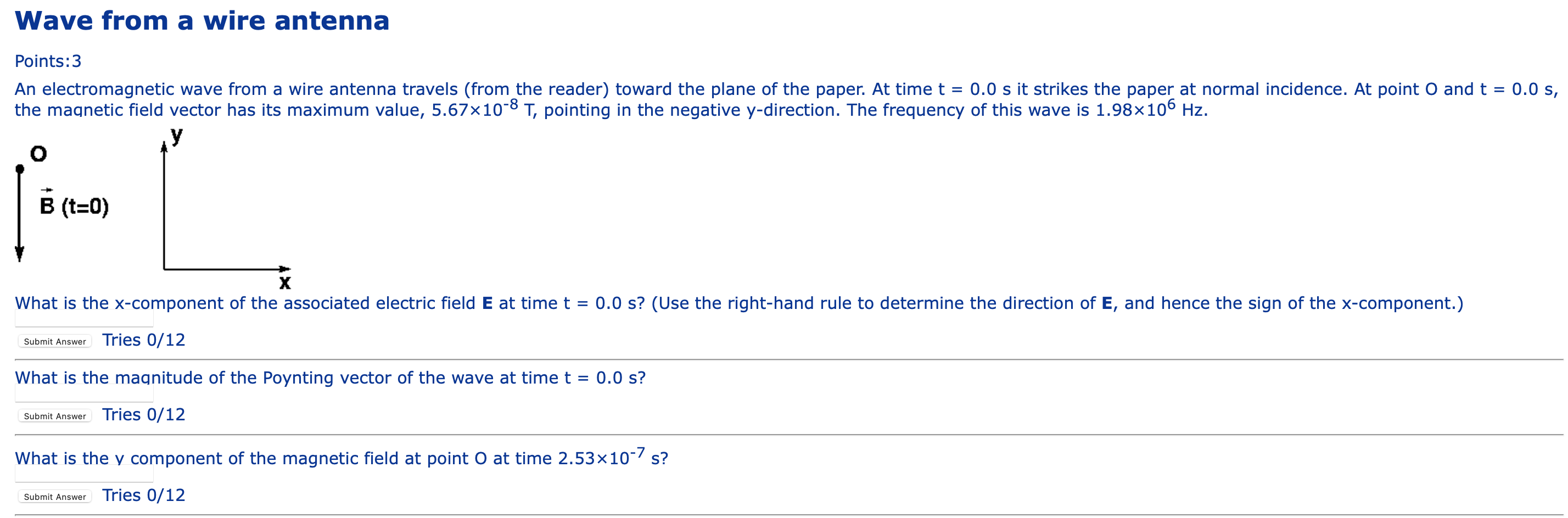

Wave from a wire antenna = Points:3 An electromagnetic wave from a wire antenna travels (from the reader) toward the plane of the paper. At time t = 0.0 s it strikes the paper at normal incidence. At point O and t = 0.0 s, the magnetic field vector has its maximum value, 5.67x10-8 T, pointing in the negative y-direction. The frequency of this wave is 1.98x106 Hz. У 0 B (t=0) х What is the x-component of the associated electric field E at time t = 0.0 s? (Use the right-hand rule to determine the direction of E, and hence the sign of the x-component.) Submit Answer Tries 0/12 What is the magnitude of the Poynting vector of the wave at time t = 0.0 s? Submit Answer Tries 0/12 What is the y component of the magnetic field at point o at time 2.53x10-7 s? Submit Answer Tries 0/12
