The figure below, illustrates an Atwood's machine. Let the masses of blocks A and B be 7.50 kg and 2.50 kg , respectivel

[answerhappygod]

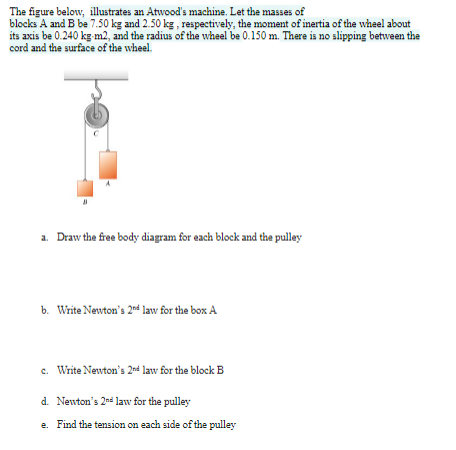

The Figure Below Illustrates An Atwood S Machine Let The Masses Of Blocks A And B Be 7 50 Kg And 2 50 Kg Respectivel 1 (26.83 KiB) Viewed 48 times

The figure below, illustrates an Atwood's machine. Let the masses of blocks A and B be 7.50 kg and 2.50 kg , respectively, the moment of inertia of the wheel about its axis be 0.240 kg m2, and the radius of the wheel be 0.150 m. There is no slipping between the cord and the surface of the wheel 2. Draw the free body diagram for each block and the pulley b. Write Newton's 2nd law for the box A c. Write Newton's 2nd law for the block B d. Newton's 2nd law for the pulley e. Find the tension on each side of the pulley
