Consider the mass-on-a-spring system as shown in the figure below. The spring has a spring constant of 671 N/m, and the

[answerhappygod]

Consider The Mass On A Spring System As Shown In The Figure Below The Spring Has A Spring Constant Of 671 N M And The 1 (75.61 KiB) Viewed 52 times

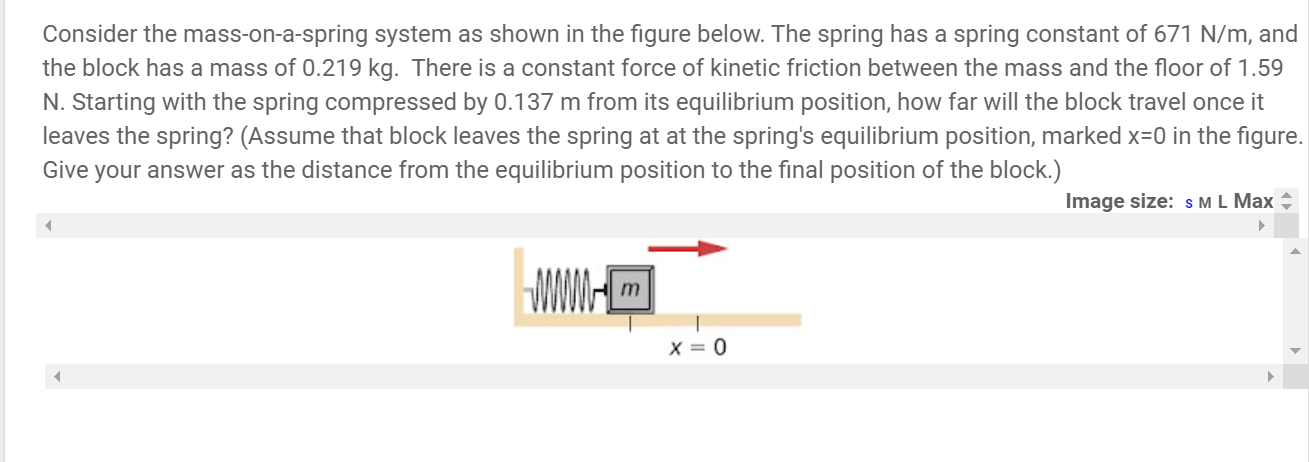

Consider the mass-on-a-spring system as shown in the figure below. The spring has a spring constant of 671 N/m, and the block has a mass of 0.219 kg. There is a constant force of kinetic friction between the mass and the floor of 1.59 N. Starting with the spring compressed by 0.137 m from its equilibrium position, how far will the block travel once it leaves the spring? (Assume that block leaves the spring at at the spring's equilibrium position, marked x=0 in the figure. Give your answer as the distance from the equilibrium position to the final position of the block.) Image size: s ML Max – m X=0
