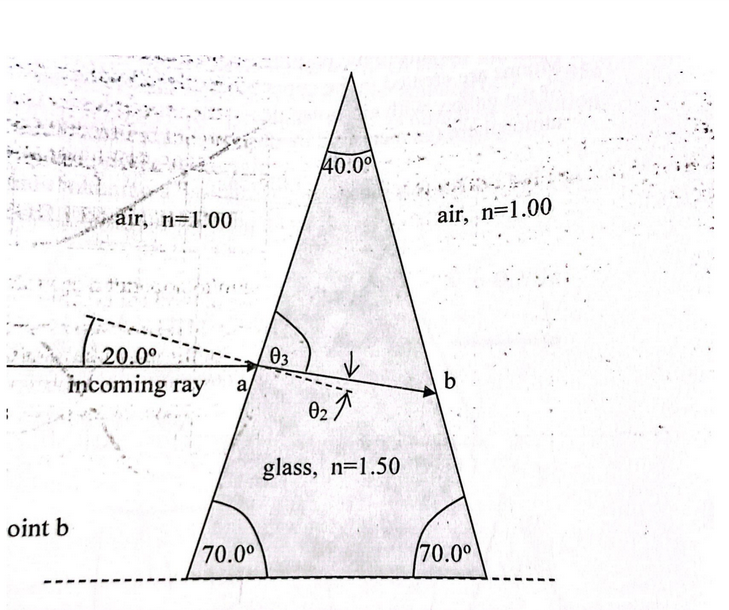

prism at point ‘a’ as shown in the figure.
- A Ray Of Light Parallel To The Base Of The Prism Enters A Glass Prism At Point A As Shown In The Figure A Find The 1 (572.24 KiB) Viewed 51 times
normal line of the refracted ray inside the glass
b.) Find the angle θ3 of the ray
inside of the glass from the glass surface
c.) Show the normal line at point b on the figure.
d.) Find the angle θ4 of the ray in
the air beyond point b from the normal line.
e.) Show on the figure above the refracted ray in the air beyond
point b.

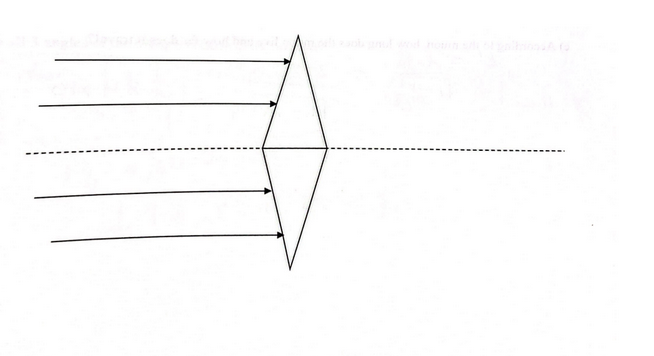

f.) Sketch on the figure below the path of the 4 rays in the
glass and show them coming out of the prism back into the air on
the right-hand side of the prism until they reach the right-hand
edge of the page
