Consider a cylindrical specimen of a steel alloy (see figure below) 15.0 mm in diameter and 75 mm long that is pulled in

Post by answerhappygod »

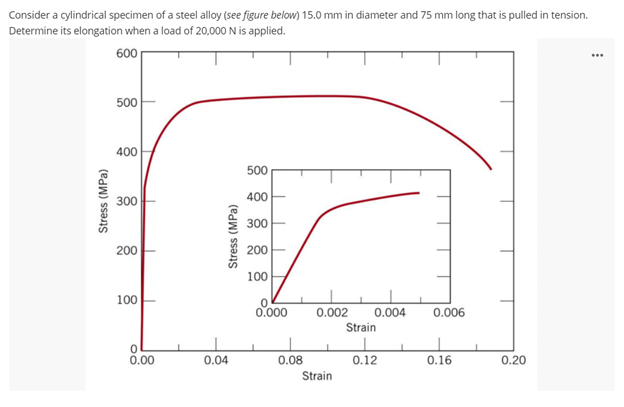

Consider A Cylindrical Specimen Of A Steel Alloy See Figure Below 15 0 Mm In Diameter And 75 Mm Long That Is Pulled In 1
Consider A Cylindrical Specimen Of A Steel Alloy See Figure Below 15 0 Mm In Diameter And 75 Mm Long That Is Pulled In 1 (93.26 KiB) Viewed 54 times
Consider a cylindrical specimen of a steel alloy (see figure below) 15.0 mm in diameter and 75 mm long that is pulled in tension. Determine its elongation when a load of 20,000 N is applied. 600 ... 500 400 500 Stress (MPa) 300 400 300 Stress (MPa) 200 200 100 100 1 0.000 0.006 0.002 0.004 Strain 0 0.00 0.04 0.12 0.16 0.20 0.08 Strain
