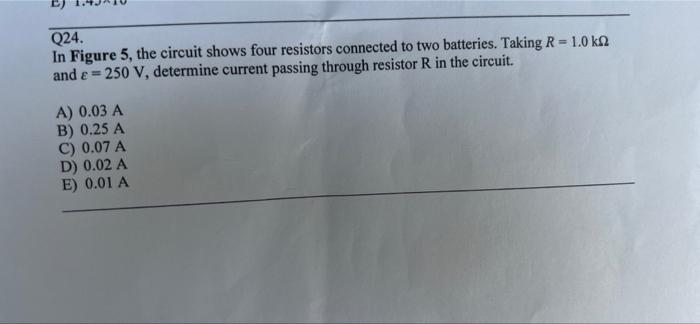

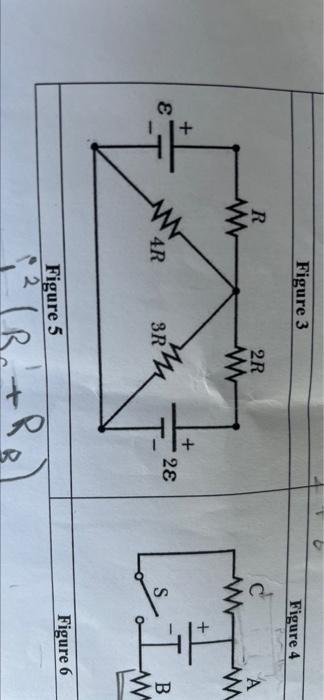

Q24. In Figure 5, the circuit shows four resistors connected to two batteries. Taking R=1.0 KN and e = 250 V, determine current passing through resistor R in the circuit. A) 0.03 A B) 0.25 A C) 0.07 A D) 0.02 A E) 0.01 A
Figure 3 Figure 4 R 2R W A W MI 1 + 1.1+ E 28 4R SR S I سلام B Figure 6 Figure 5 (R.
