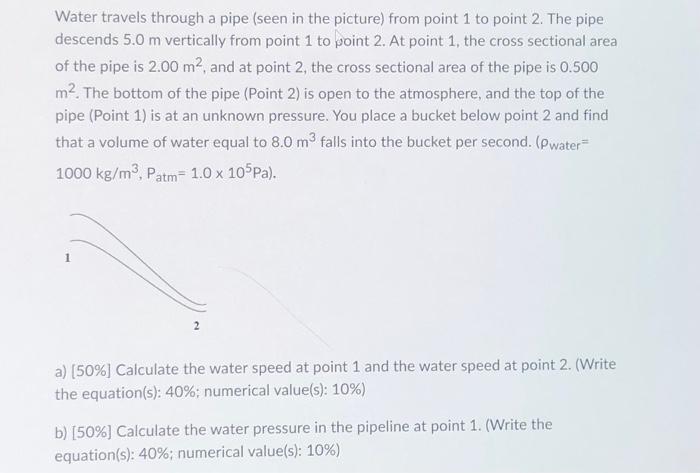

Water travels through a pipe (seen in the picture) from point 1 to point 2. The pipe descends 5.0 m vertically from poin

[answerhappygod]

Water Travels Through A Pipe Seen In The Picture From Point 1 To Point 2 The Pipe Descends 5 0 M Vertically From Poin 1 (33.24 KiB) Viewed 53 times

Water travels through a pipe (seen in the picture) from point 1 to point 2. The pipe descends 5.0 m vertically from point 1 to point 2. At point 1, the cross sectional area of the pipe is 2.00 m2, and at point 2, the cross sectional area of the pipe is 0.500 m2. The bottom of the pipe (Point 2) is open to the atmosphere, and the top of the pipe (Point 1) is at an unknown pressure. You place a bucket below point 2 and find that a volume of water equal to 8.0 m2 falls into the bucket per second. (water= 1000 kg/m3, Patm= 1.0 x 105Pa). a) (50%) Calculate the water speed at point 1 and the water speed at point 2. (Write the equation(s): 40%; numerical value(s): 10%) b) (50%] Calculate the water pressure in the pipeline at point 1. (Write the equation(s): 40%; numerical value(s): 10%)
