Three images are shown in the below figure. The scaling in each image is different and is normalized to the same maximum

[answerhappygod]

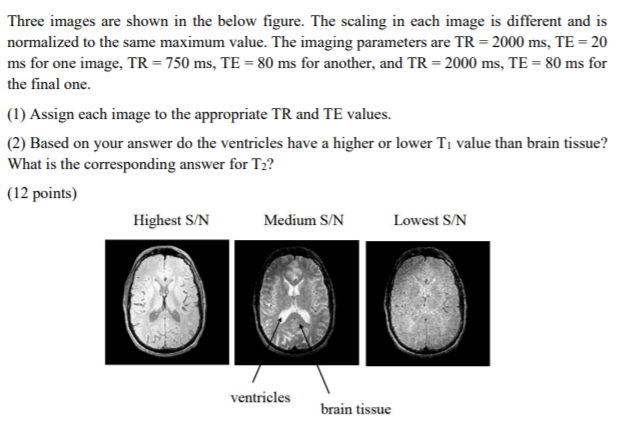

Three Images Are Shown In The Below Figure The Scaling In Each Image Is Different And Is Normalized To The Same Maximum 1 (142.2 KiB) Viewed 45 times

Three images are shown in the below figure. The scaling in each image is different and is normalized to the same maximum value. The imaging parameters are TR = 2000 ms, TE = 20 ms for one image, TR = 750 ms, TE = 80 ms for another, and TR = 2000 ms, TE = 80 ms for the final one. (1) Assign each image to the appropriate TR and TE values. (2) Based on your answer do the ventricles have a higher or lower T, value than brain tissue? What is the corresponding answer for T2? (12 points) Highest S/N Medium S/N Lowest S/N ventricles brain tissue
