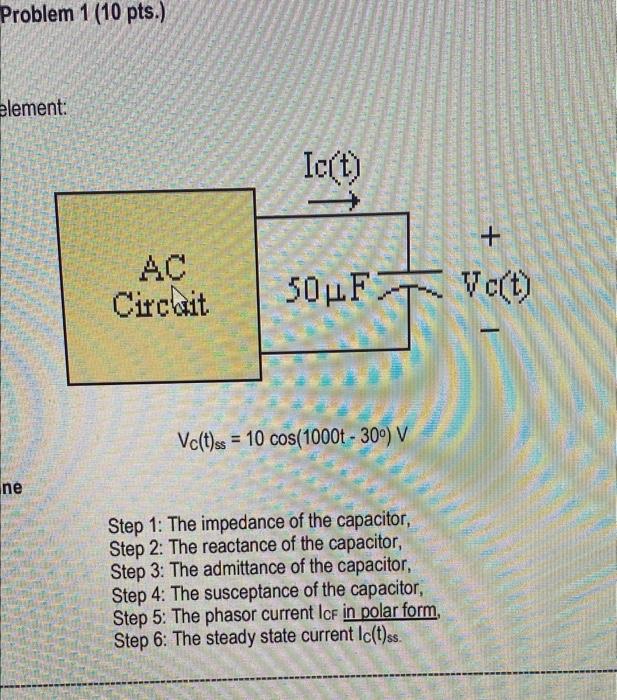

Problem 1 (10 pts.) element: Ict) + Circuit 50LF Vc) Vc(t) ss = 10 cos(1000t - 300) V ne Step 1: The impedance of the ca

[answerhappygod]

Problem 1 10 Pts Element Ict Circuit 50lf Vc Vc T Ss 10 Cos 1000t 300 V Ne Step 1 The Impedance Of The Ca 1 (94.78 KiB) Viewed 55 times

Problem 1 (10 pts.) element: Ict) + Circuit 50LF Vc) Vc(t) ss = 10 cos(1000t - 300) V ne Step 1: The impedance of the capacitor, Step 2: The reactance of the capacitor, Step 3: The admittance of the capacitor, Step 4: The susceptance of the capacitor, Step 5: The phasor current loc in polar form, Step 6: The steady state current Ic(t)s
