9 2.0 22 m А 3.0 22 B w 4.0 S2 Three resistors are connected as shown in figure. The potential difference between points

Post by answerhappygod »

1
1 (37.37 KiB) Viewed 77 times

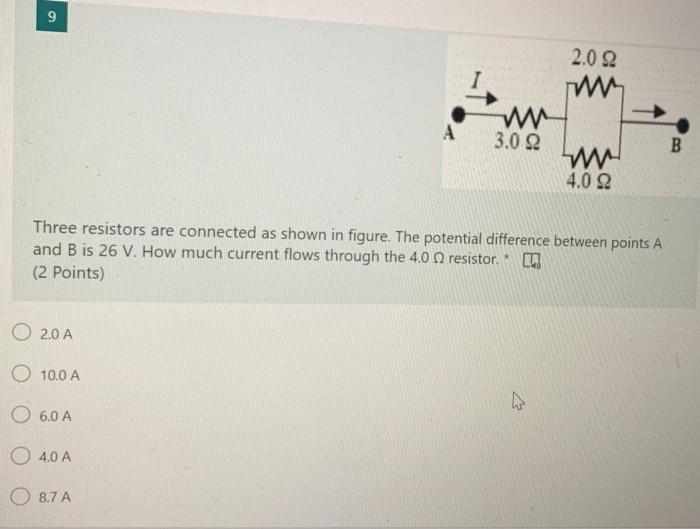

9 2.0 22 m А 3.0 22 B w 4.0 S2 Three resistors are connected as shown in figure. The potential difference between points A and B is 26 V. How much current flows through the 4.0 resistor. Co (2 points) O 20A 0 10.0 A 6.0 A O 4.0 A O 8.7 A
