- The Volumemc Flowrate Of Liquid Into Tank 1 Fi T Varies With Time In An Uncontrolled Manner And So The Height Of Fiu 1 (48.27 KiB) Viewed 54 times

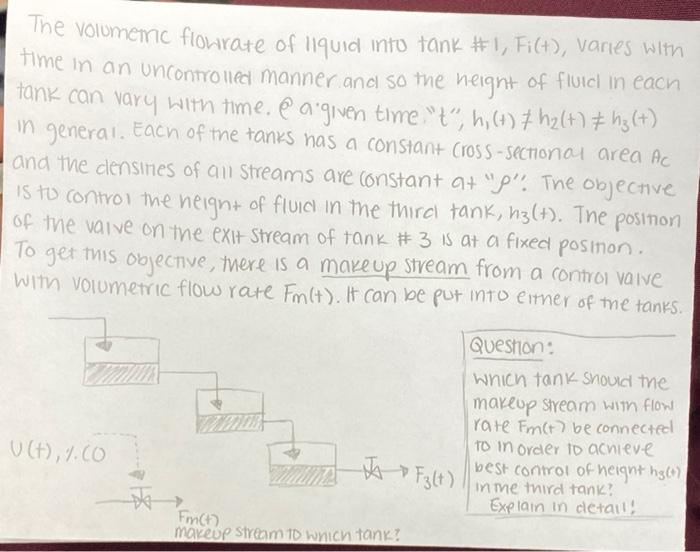

The volumemc flowrate of liquid into tank #1, Fi(t), varies with time in an uncontrolled manner and so the height of fiuicl in each tank can vary with time. @argiven time "t", h, (+) #hy (+) + 13 (+) in general. Each of the tanks nas a constant cross-sectional area Ac and the densines of an Streams are constant at "P'. The objecuve is to control the height of fluid in the thirel tank, hz(+). The posinon of the valve on the exit stream of tank #3 Is at a fixed posinon To get this objective, there is a makeup stream from a control valve with volumetric flow rate Fm (t). It can be put into either of the tanks. Question: which tank should the makeup stream with flow Yare Fmilt be connected to in order to achieve best control of heignt hg() Explain in detail! UCH), 7.00 No F3lt) in me third tank? Finct) makeup Stream to which tank?
