An Inductor (L - 400 ml), a capacitor (C-443F), and a resistor (R - 500 l) are connected in series. A 56.0-Hz AC generat

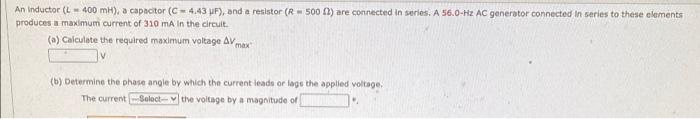

An Inductor (L - 400 ml), a capacitor (C-443F), and a resistor (R - 500 l) are connected in series. A 56.0-Hz AC generator connected in series to these elements produces a maximum current of 310 mA in the circuit (a) Calculate the required maximum voltage av max (b) Determine the phase angle by which the current leads or lage the applied voltage The current Select the voltage by a magnitude of
