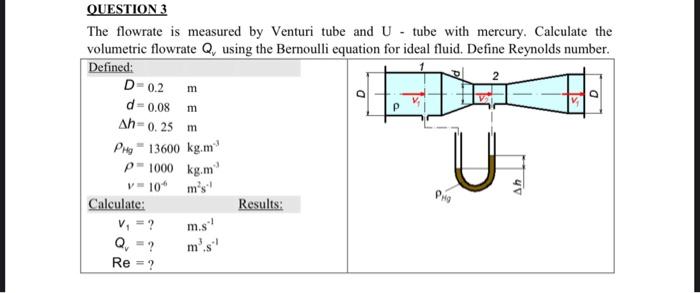

QUESTION 3 The flowrate is measured by Venturi tube and U - tube with mercury. Calculate the volumetric flowrate Q, using the Bernoulli equation for ideal fluid. Define Reynolds number. Defined: 2 D-0.2 m d-0.08 m Ah=0.25 m PH 13600 kg.m P-1000 kg.m V-10" Calculate: Results: V = ? Q ? U. m's Ah PG m.si m . Re = ?
