A box of mass mi = 1kg is connected to a string on one end and a spring with spring constant k = 100M on the other end.

Post by answerhappygod »

A Box Of Mass Mi 1kg Is Connected To A String On One End And A Spring With Spring Constant K 100m On The Other End 1
A Box Of Mass Mi 1kg Is Connected To A String On One End And A Spring With Spring Constant K 100m On The Other End 1 (171.21 KiB) Viewed 44 times

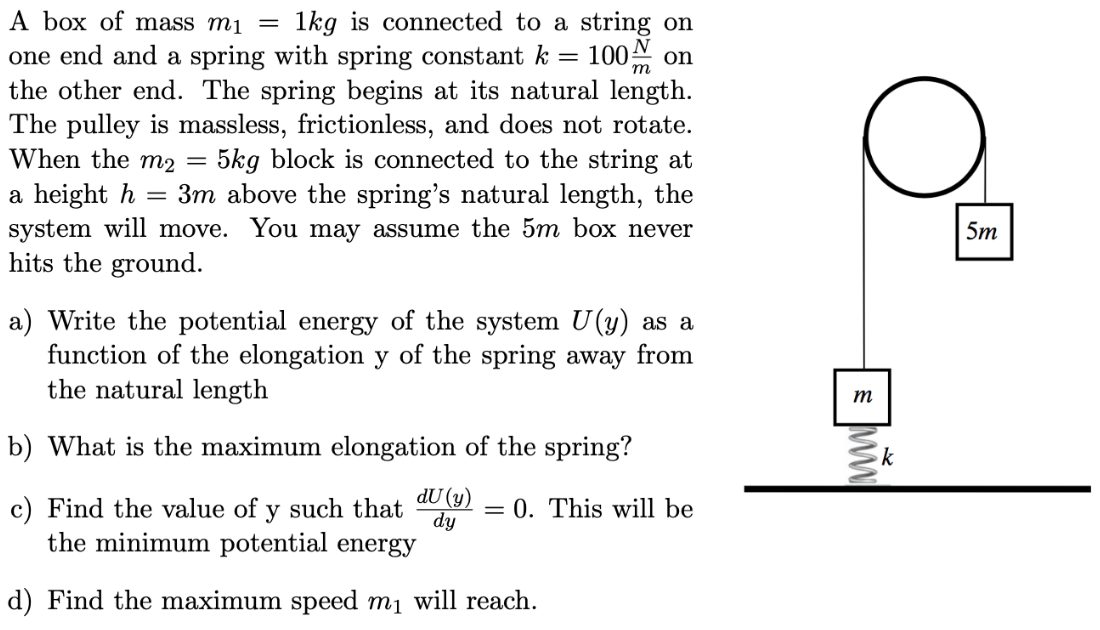

A box of mass mi = 1kg is connected to a string on one end and a spring with spring constant k = 100M on the other end. The spring begins at its natural length. The pulley is massless, frictionless, and does not rotate. When the m2 = 5kg block is connected to the string at a height h 3m above the spring's natural length, the system will move. You may assume the 5m box never hits the ground. 5m a) Write the potential energy of the system U(y) as a function of the elongation y of the spring away from the natural length m b) What is the maximum elongation of the spring? k du (y) = 0. This will be c) Find the value of y such that dy the minimum potential energy d) Find the maximum speed mi will reach.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
