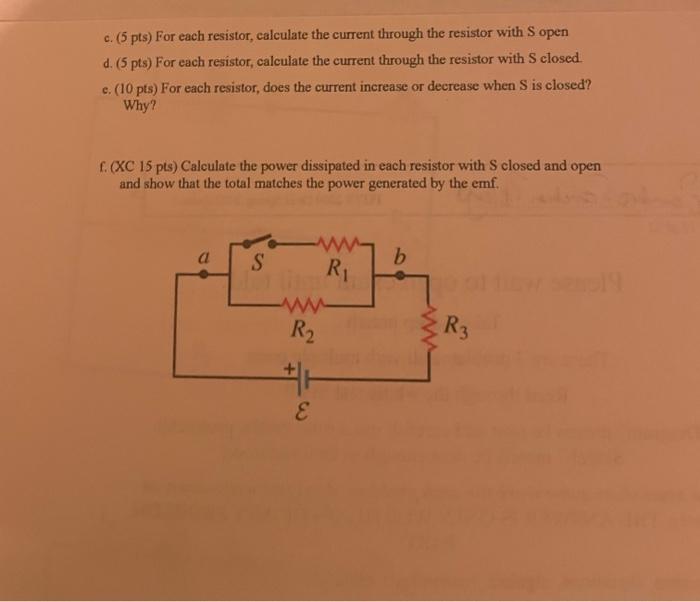

1 Refer To The Values In The Box For The Circuit Shown In Figure You Can Assume An Ideal Battery A 10 Pts What Is T 2 (26.23 KiB) Viewed 35 times
1) Refer to the values in the box for the circuit shown in Figure. You can assume an ideal battery a. (10 pts) What is the potential difference. V between points a and b when the switch S is open and b. (10 pts) What is the potential difference between points a and b when S is closed?
c. (5 pts) For each resistor, calculate the current through the resistor with S open d. (5 pts) For each resistor, calculate the current through the resistor with S closed c. (10 pts) For each resistor, does the current increase or decrease when S is closed? Why? e (XC 15 pts) Calculate the power dissipated in each resistor with S closed and open and show that the total matches the power generated by the ernf. S b a Ri w R2 # E R₃
