A sinusoidal voltage Av = 42.5 sin(100t), where Av is in volts and t is in seconds, is applied to a series RLC circuit w

[answerhappygod]

A Sinusoidal Voltage Av 42 5 Sin 100t Where Av Is In Volts And T Is In Seconds Is Applied To A Series Rlc Circuit W 1 (47.34 KiB) Viewed 50 times

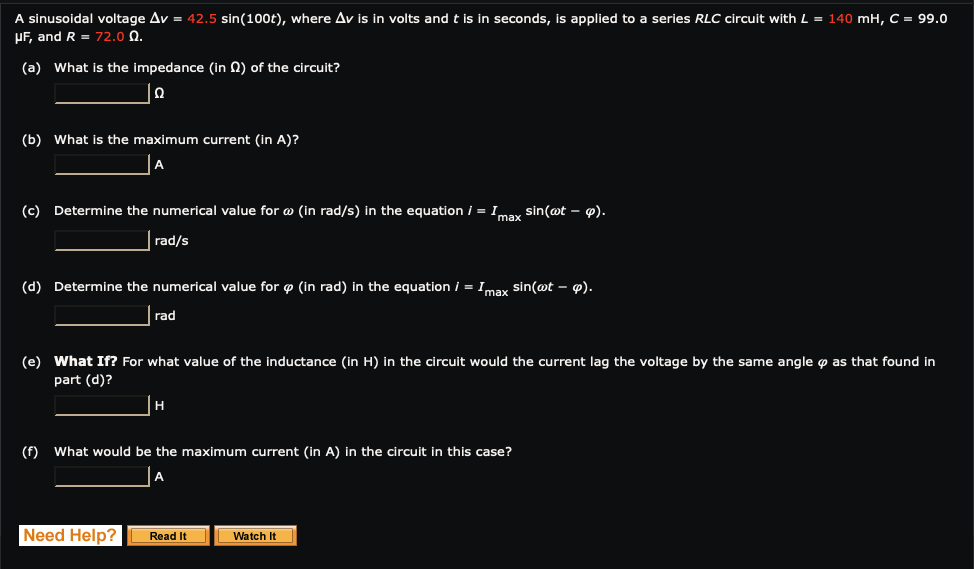

A sinusoidal voltage Av = 42.5 sin(100t), where Av is in volts and t is in seconds, is applied to a series RLC circuit with L = 140 mH, C = 99.0 PF, and R = 72.0 2. (a) What is the impedance (in Q) of the circuit? (b) What is the maximum current (in A)? (c) Determine the numerical value for o (in rad/s) in the equation i = Imax sin(wt – ). rad/s (d) Determine the numerical value for o (in rad) in the equation i = Imax sin(ot - 9). rad (e) What If? For what value of the inductance (in H) in the circuit would the current lag the voltage by the same angle y as that found in part (d)? |н (f) What would be the maximum current (in A) in the circuit in this case? Need Help? Read It Watch It
