Q4 The analysis of the voltage, V for the circuit given in Figure Q4 can be expressed in the following three equations:

[answerhappygod]

Q4 The Analysis Of The Voltage V For The Circuit Given In Figure Q4 Can Be Expressed In The Following Three Equations 1 (151.01 KiB) Viewed 34 times

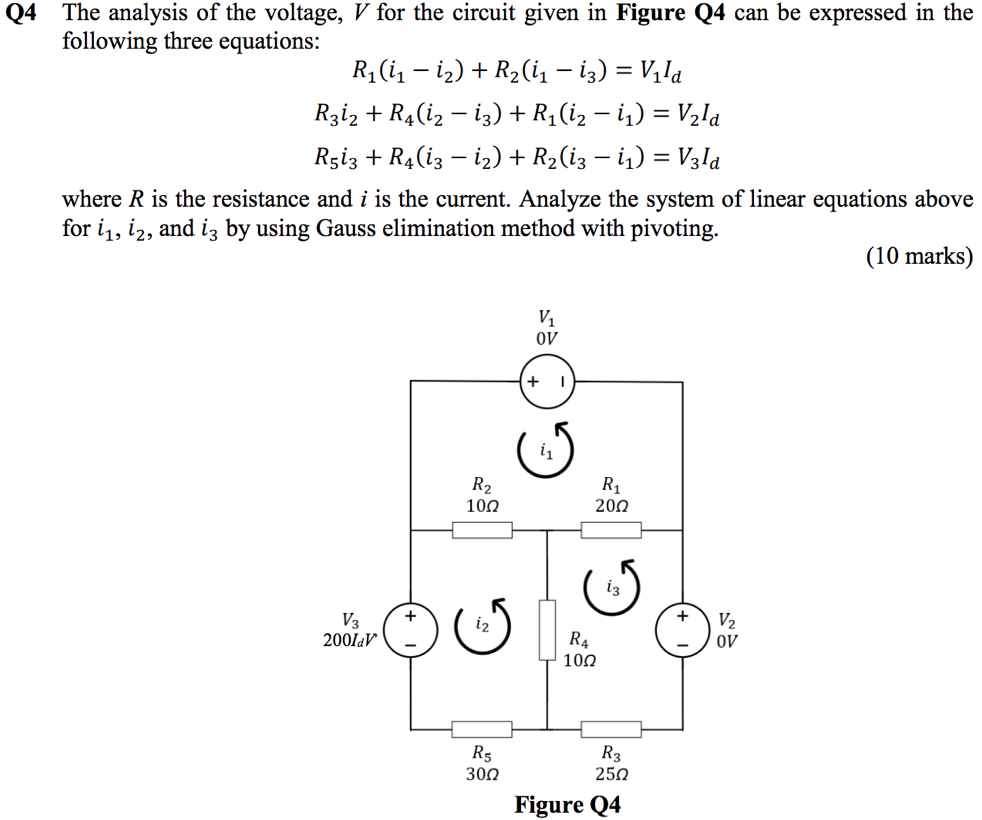

Q4 The analysis of the voltage, V for the circuit given in Figure Q4 can be expressed in the following three equations: R1(i1 – iz) + R2 (i1 – iz) = Vild Rziz + R4(iz – iz) +R (iz – ii) = V2ld Rşiz + R4(iz – iz) + R2(iz – ij) = Vzla where R is the resistance and i is the current. Analyze the system of linear equations above for iį, i2, and iz by using Gauss elimination method with pivoting. (10 marks) V OV + i1 R2 1002 R1 20Ω iz V3 2001V 12 V2 OV R4 10Ω RS 30Ω R3 25,2 Figure Q4
