(6%) Problem 11: An electronic toy is powered by three 1.58-V alkaline cells, each with an internal resistance of 0.018

[answerhappygod]

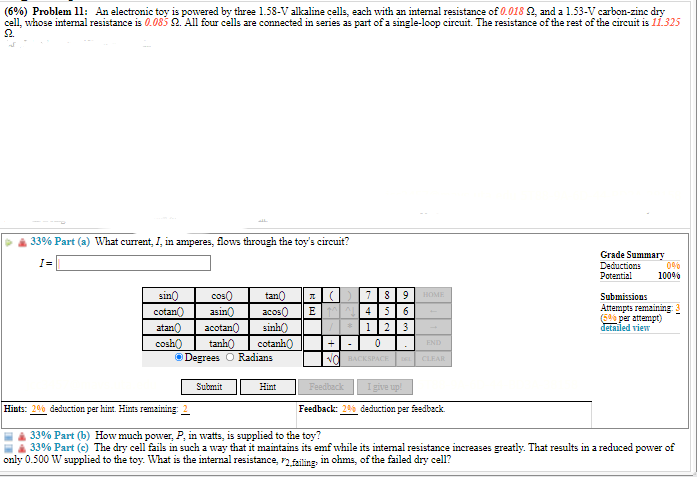

6 Problem 11 An Electronic Toy Is Powered By Three 1 58 V Alkaline Cells Each With An Internal Resistance Of 0 018 1 (30.65 KiB) Viewed 54 times

(6%) Problem 11: An electronic toy is powered by three 1.58-V alkaline cells, each with an internal resistance of 0.018 Q and a 1.53-V carbon-zinc dry cell, whose internal resistance is 0.085 2. All four cells are connected in series as part of a single-loop circuit. The resistance of the rest of the circuit is 11.325 Ω. 33% Part (a) What current. I in amperes, flows through the toy's circuit? I= Grade Summary Deductions 096 Potential 100% E sino cos tan) cotan asino acoso atan acotan sinho cosh tanho cotanho Degrees O Radians 789 4 56 123 + - 0 vd HACKSPACE Submissions Attempts remaining 6 per attempt) detailed view EN CLEAR Submit Hint Feedback I give up Hints: 2deduction per hist. Hints remaining 2 Feedback: 20 deduction per feedback 33% Part (b) How much power, P, in watts, is supplied to the toy? 33% Part (e) The dry cell fails in such a way that it maintains its emf while its intemal resistance increases greatly. That results in a reduced power of only 0.500 W supplied to the toy. What is the internal resistance, n2 failing in ohms of the failed dry cell?
