2) In the circuit shown in the Figure, find a. (20 pts) the current in each horizontal branch and b. (10 pts) the potent
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2) In the circuit shown in the Figure, find a. (20 pts) the current in each horizontal branch and b. (10 pts) the potent

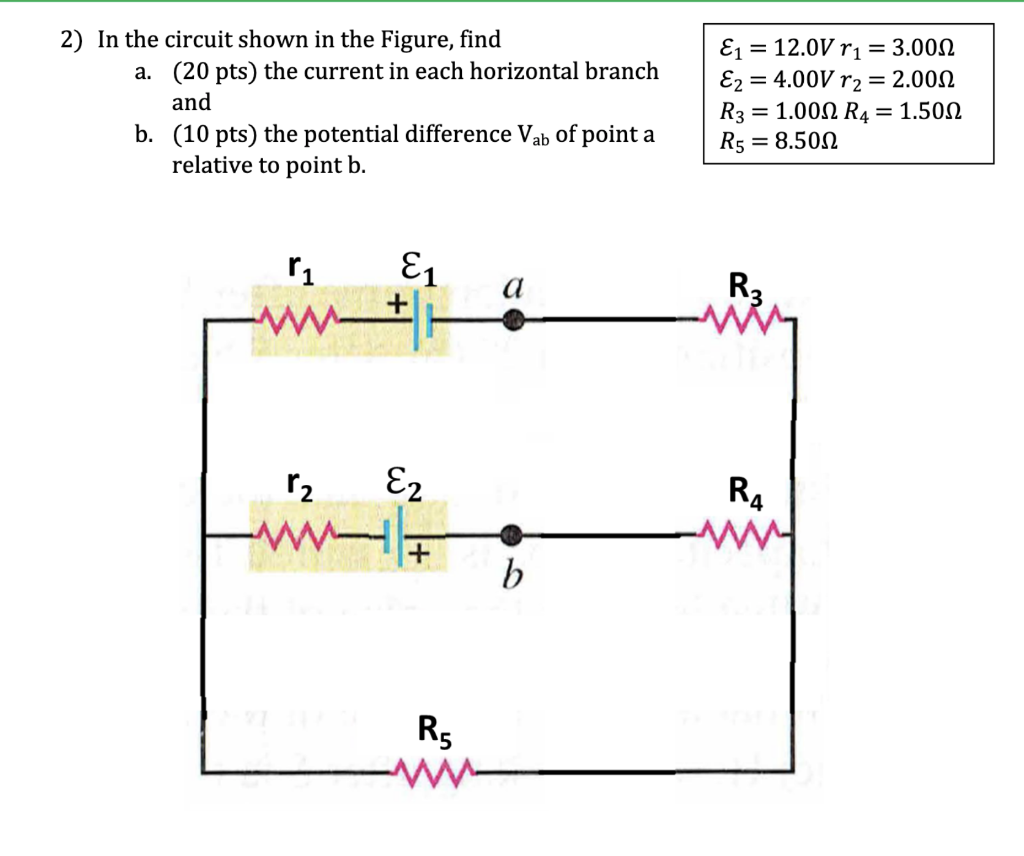

2) In the circuit shown in the Figure, find a. (20 pts) the current in each horizontal branch and b. (10 pts) the potential difference Vab of point a relative to point b. E1 = 12.0V r1 = 3.0012 E2 = 4.00V r2 = 2.0012 R3 = 1.0012 R4 = 1.5012 R5 = 8.5012 r1 E1 R3 + r2 E2 RA W- HF b RS
