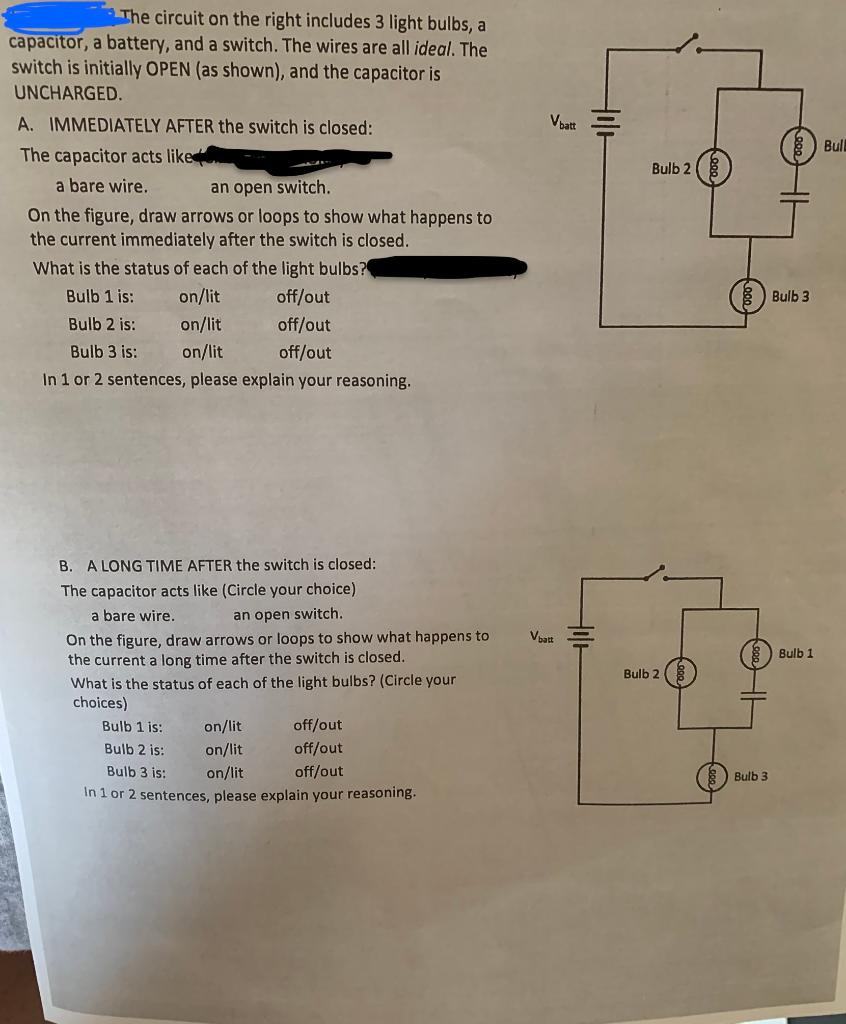

V batt Hole Bull Bulb 2 The circuit on the right includes 3 light bulbs, a capacitor, a battery, and a switch. The wires

[answerhappygod]

V Batt Hole Bull Bulb 2 The Circuit On The Right Includes 3 Light Bulbs A Capacitor A Battery And A Switch The Wires 1 (87.6 KiB) Viewed 54 times

V batt Hole Bull Bulb 2 The circuit on the right includes 3 light bulbs, a capacitor, a battery, and a switch. The wires are all ideal. The switch is initially OPEN (as shown), and the capacitor is UNCHARGED. A. IMMEDIATELY AFTER the switch is closed: The capacitor acts like a bare wire. an open switch. On the figure, draw arrows or loops to show what happens to the current immediately after the switch is closed. What is the status of each of the light bulbs? Bulb 1 is: on/lit off/out Bulb 2 is: on/lit off/out Bulb 3 is: on/lit off/out In 1 or 2 sentences, please explain your reasoning, Bulb 3 V batt Hold these Bulb 1 Bulb 2 B. A LONG TIME AFTER the switch is closed: The capacitor acts like (Circle your choice) a bare wire. an open switch. On the figure, draw arrows or loops to show what happens to the current a long time after the switch is closed. What is the status of each of the light bulbs? (Circle your choices) Bulb 1 is: on/lit off/out on/lit off/out Bulb 3 is: on/lit off/out In 1 or 2 sentences, please explain your reasoning. here Bulb 2 is: free) Bulb 3
