Physics students are learning to use phasor diagrams to analyze RLC series circuits. They are given the following phasor

Post by answerhappygod »

Physics Students Are Learning To Use Phasor Diagrams To Analyze Rlc Series Circuits They Are Given The Following Phasor 1
Physics Students Are Learning To Use Phasor Diagrams To Analyze Rlc Series Circuits They Are Given The Following Phasor 1 (45.21 KiB) Viewed 41 times
Please type all answers at the end and mark each one.
Example:
a = 1111

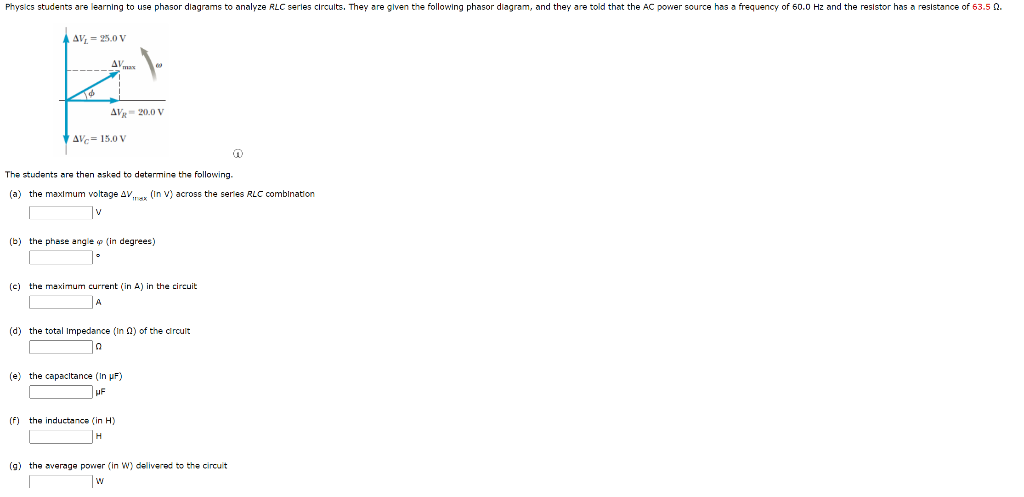

Physics students are learning to use phasor diagrams to analyze RLC series circuits. They are given the following phasor diagram, and they are told that the AC power source has a frequency of 50.0 Hz and the resistor has a resistance of 53.5 0. AV = 25.0 V AV 0 AV - 20.0 V AV = 15.0 V The students are then asked to determine the following. (a) the maximum voltage AV (In V) across the series RLC combination (b) the phase angle in degrees) (c) the maximum current (in A) in the circuit A (d) the total Impedance (In 2) of the circult 10 (e) the capacitance (In F) PF (F) the inductance (in H) (9) the average power in W) delivered to the circuit W
