Example:
Ceq = 1111

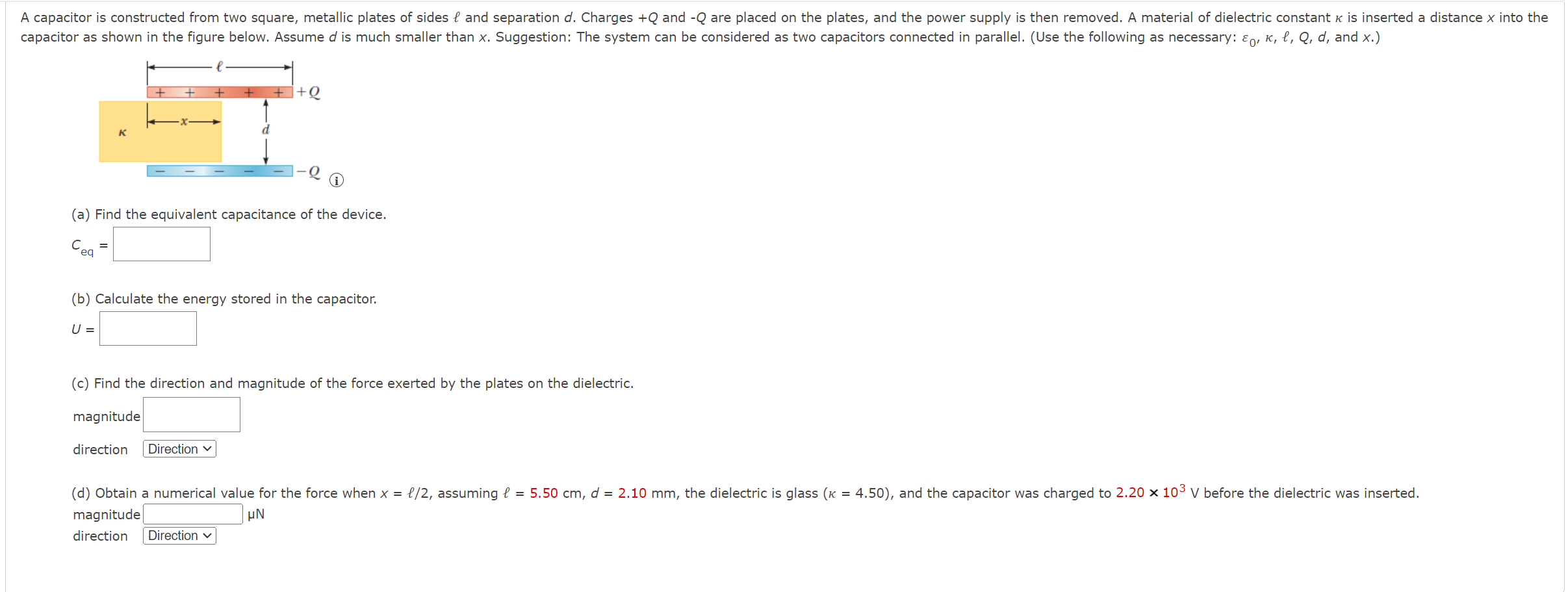

A capacitor is constructed from two square, metallic plates of sides { and separation d. Charges +Q and -Q are placed on the plates, and the power supply is then removed. A material of dielectric constant k is inserted a distance x into the capacitor as shown in the figure below. Assume d is much smaller than x. Suggestion: The system can be considered as two capacitors connected in parallel. (Use the following as necessary: Ej, k, l, Q, d, and x.) + + к (a) Find the equivalent capacitance of the device. C eg (b) Calculate the energy stored in the capacitor. U = (c) Find the direction and magnitude of the force exerted by the plates on the dielectric. magnitude direction Direction (d) Obtain a numerical value for the force when x = f/2, assuming f = 5.50 cm, d = 2.10 mm, the dielectric is glass (k = 4.50), and the capacitor was charged to 2.20 x 103 V before the dielectric was inserted. magnitude μΝ direction Direction
