The circuit in the figure consists of switch S, a 4.70 V ideal battery, a 40.0 MQ resistor, and an airfilled capacitor.

Post by answerhappygod »

The Circuit In The Figure Consists Of Switch S A 4 70 V Ideal Battery A 40 0 Mq Resistor And An Airfilled Capacitor 1
The Circuit In The Figure Consists Of Switch S A 4 70 V Ideal Battery A 40 0 Mq Resistor And An Airfilled Capacitor 1 (18.5 KiB) Viewed 40 times

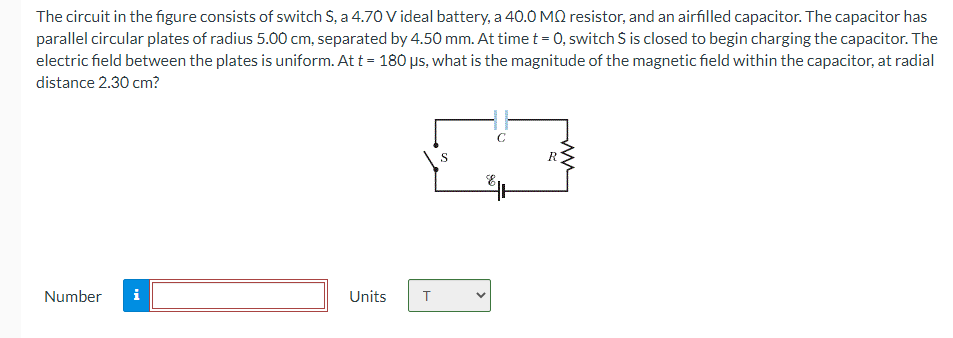

The circuit in the figure consists of switch S, a 4.70 V ideal battery, a 40.0 MQ resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 5.00 cm, separated by 4.50 mm. At time t= 0, switch S is closed to begin charging the capacitor. The electric field between the plates is uniform. At t= 180 us, what is the magnitude of the magnetic field within the capacitor, at radial distance 2.30 cm? S R Number i Units T <
