10. The system shown below is released from rest with the spring in its natural position. As m (the block) descends, M (
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
10. The system shown below is released from rest with the spring in its natural position. As m (the block) descends, M (

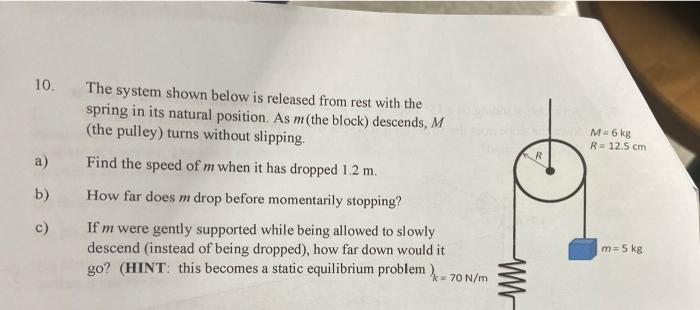

10. The system shown below is released from rest with the spring in its natural position. As m (the block) descends, M (the pulley) turns without slipping. Find the speed of m when it has dropped 1.2 m M 6 kg R12.5 cm R a) b) How far does m drop before momentarily stopping? c) If m were gently supported while being allowed to slowly descend instead of being dropped), how far down would it go? (HINT this becomes a static equilibrium problem ) - 70 N/m m=5 kg W
