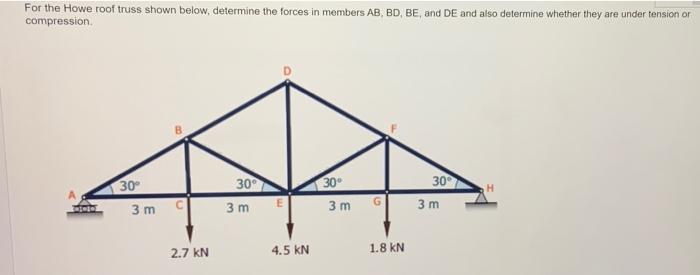

For the Howe roof truss shown below, determine the forces in members AB, BD, BE, and De and also determine whether they are under tension on compression H 30 3 m 30 3 m SIE 30 3 m 30 3 m meter 2.7 kN 4.5 KN 1.8 KN

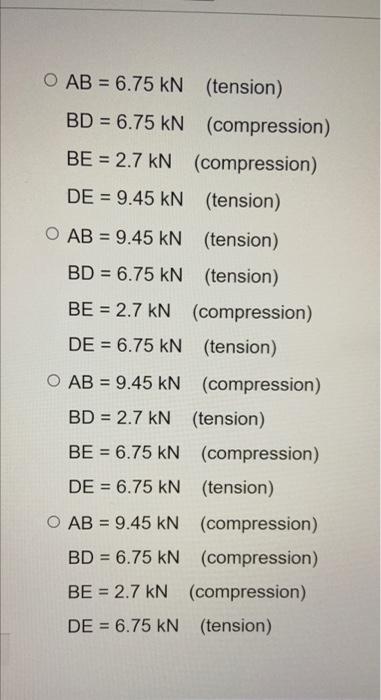

O AB = 6.75 kN (tension) BD = 6.75 kN (compression) BE = 2.7 kN (compression) DE = 9.45 kN (tension) O AB = 9.45 kN (tension) BD = 6.75 kN (tension) BE = 2.7 kN (compression) DE = 6.75 kN (tension) O AB = 9.45 kN (compression) BD = 2.7 kN (tension) BE = 6.75 kN (compression) DE = 6.75 kN (tension) O AB = 9.45 kN (compression) BD = 6.75 kN (compression) BE = 2.7 kN (compression) DE = 6.75 kN (tension)
