Problem 12: (10 Points) Two children pull in opposite directions on a toy wagon of mass 12.0 kg. one exerts a force of 4

[answerhappygod]

Problem 12 10 Points Two Children Pull In Opposite Directions On A Toy Wagon Of Mass 12 0 Kg One Exerts A Force Of 4 1 (50.69 KiB) Viewed 35 times

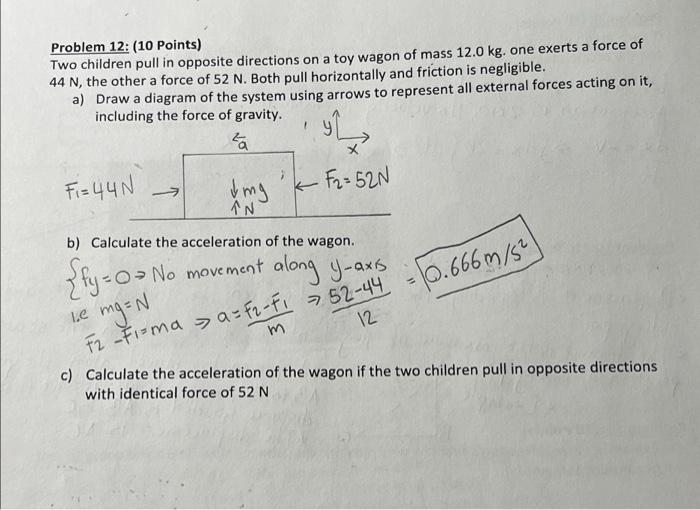

Problem 12: (10 Points) Two children pull in opposite directions on a toy wagon of mass 12.0 kg. one exerts a force of 44 N, the other a force of 52 N. Both pull horizontally and friction is negligible. a) Draw a diagram of the system using arrows to represent all external forces acting on it, including the force of gravity. za او F = 44N F2 = 52N & mg AN b) Calculate the acceleration of the wagon. {fy = 0 No -O > No movement along y-axs 10.666m/5) le 12 mg = N F2 -Firma a = F2-Fi 52-44 → m c) Calculate the acceleration of the wagon if the two children pull in opposite directions with identical force of 52 N
