Page < > of 8 ZOOM Do one of Problems 9 and 10 for full credit Problem 9: (6 pts) A resistor circuit Ry, R and Rs are in

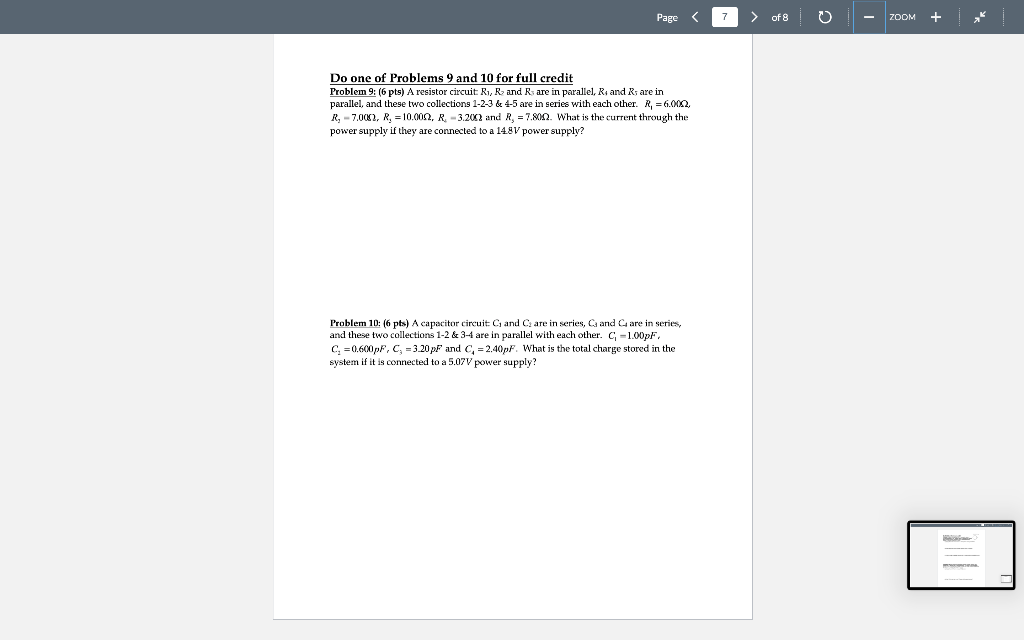

Page < > of 8 ZOOM Do one of Problems 9 and 10 for full credit Problem 9: (6 pts) A resistor circuit Ry, R and Rs are in parallel, R: and Rs are in parallel, and these two collections 1-2-3 & 45 are in series with each other. R. =6.0002. R, -7.00, R, =10.000, R. 3.2002 and R= 7.2002. What is the current through the power supply if they are connected to a 14.8V power supply? Problem 10: (6 pts) A capacitor circuit: C and Care in series, and are in series, and these two collections 1-2 & 3-4 are in parallel with each other. C -1.00pF, C =0.600pF, C, = 3.20 pF and C = 2.40pF. What is the total charge stored in the system if it is connected to a 5.07V power supply?
