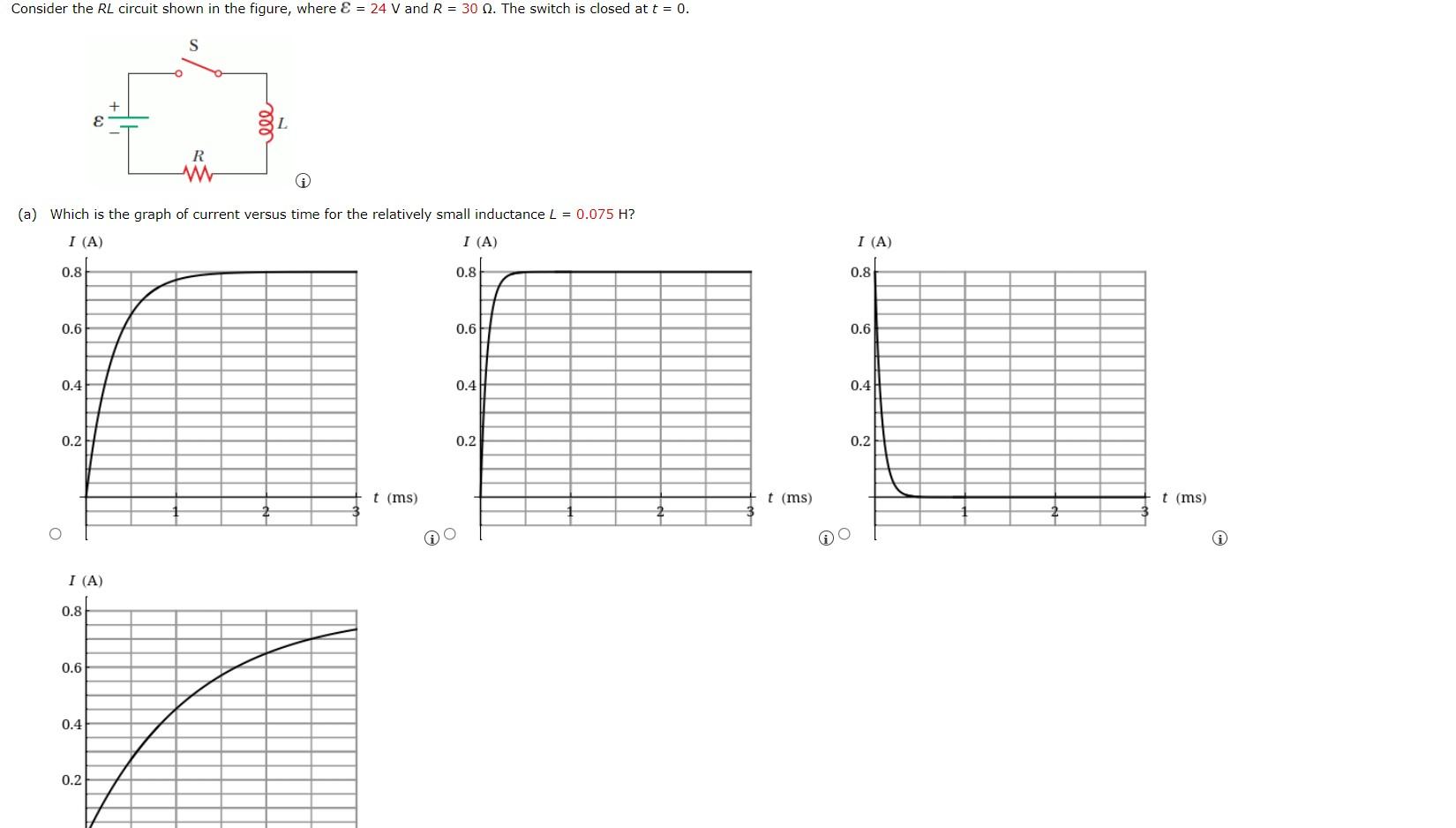

Consider The Rl Circuit Shown In The Figure Where 24 V And R 30 1 The Switch Is Closed At T 0 E R M A Which 1 (90.1 KiB) Viewed 30 times
Consider the RL circuit shown in the figure, where € = 24 V and R = 30 1. The switch is closed at t = 0. E R M (a) Which is the graph of current versus time for the relatively small inductance L = 0.075 H? I (A) I (A) I (A) 0.8 0.8 0.8 0.6 0.6 0.6 0.4 0.4 0.4 0.2 0.2 0.2 t (ms) t (ms) t (ms) i I (A) 0.8 0.6 0.4 0.2
t (ms) (b) Which is the graph of current versus time for an intermediate value of inductance, L = 0.300 H? I (A) I (A) I (A) 0.8 0.8 0.8 0.6 0.6 0.6 0.4 0.4 0.4 0.2 0.2 0.2 t (ms) t (ms) t (ms) 00 I (A) 0.8 0.6 0.4 0.2 t (ms)
(c) Which is the graph of current versus time for the relatively large inductance L = 1.20 H? I (A) I (A) I (A) 0.8 0.8 0.8 0.6 0.6 0.6 0.4 0.4 0.4 0.2 0.2 0.2 t (ms) t (ms) t (ms) O I (A) 0.8 0.6 0.4 0.2 t (ms)
