1) In the figure below, block A weighs 200 lb and block B weighs 400 lb. The coefficient of static friction for all cont

Post by answerhappygod »

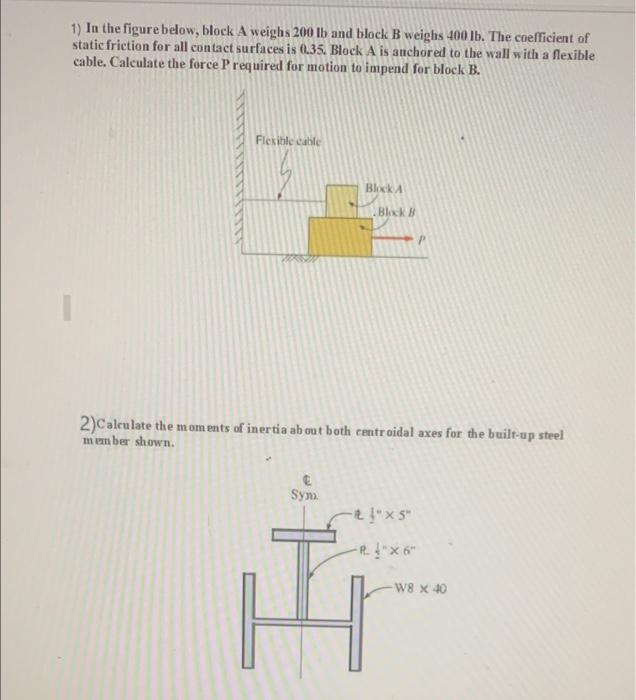

1 In The Figure Below Block A Weighs 200 Lb And Block B Weighs 400 Lb The Coefficient Of Static Friction For All Cont 1
1 In The Figure Below Block A Weighs 200 Lb And Block B Weighs 400 Lb The Coefficient Of Static Friction For All Cont 1 (41.91 KiB) Viewed 49 times
1) In the figure below, block A weighs 200 lb and block B weighs 400 lb. The coefficient of static friction for all contact surfaces is 0.35. Block A is anchored to the wall with a flexible cable. Calculate the force P required for motion to impend for block B. Flexible cable Black BB 2)Calculate the moments of inertia about both centraidal axes for the built-up steel member shown. Syn. t"x5" -R "X6" -W8 x 40
