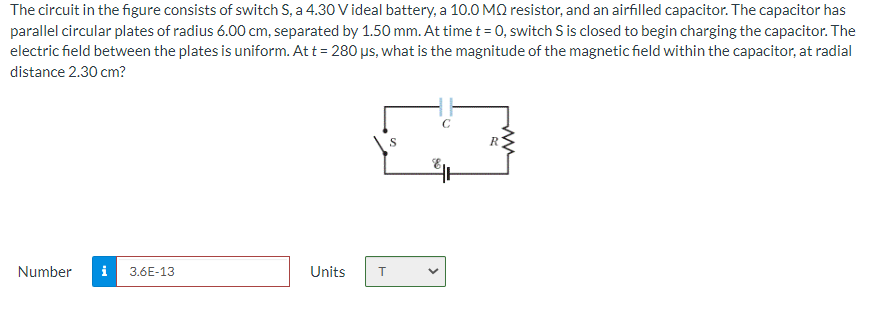

The circuit in the figure consists of switch S, a 4.30 Videal battery, a 10.0 MQ resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 6.00 cm, separated by 1.50 mm. At time t= 0, switch Sis closed to begin charging the capacitor. The electric field between the plates is uniform. At t= 280 us, what is the magnitude of the magnetic field within the capacitor, at radial distance 2.30 cm? C S Number 3.6E-13 Units T T <
The circuit in the figure consists of switch S, a 4.30 Videal battery, a 10.0 MQ resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 6.00 cm, separated by 1.50 mm. At time t= 0, switch Sis closed to begin charging the capacitor. The electric field between the plates is uniform. At t= 280 us, what is the magnitude of the magnetic field within the capacitor, at radial distance 2.30 cm? C S Number 3.6E-13 Units T T <
