Submit Previous Answers Correct A shunt-wound DC motor with the field coils and rotor connected in parallel (Figure 1) o

[answerhappygod]

Submit Previous Answers Correct A Shunt Wound Dc Motor With The Field Coils And Rotor Connected In Parallel Figure 1 O 1 (98.73 KiB) Viewed 54 times

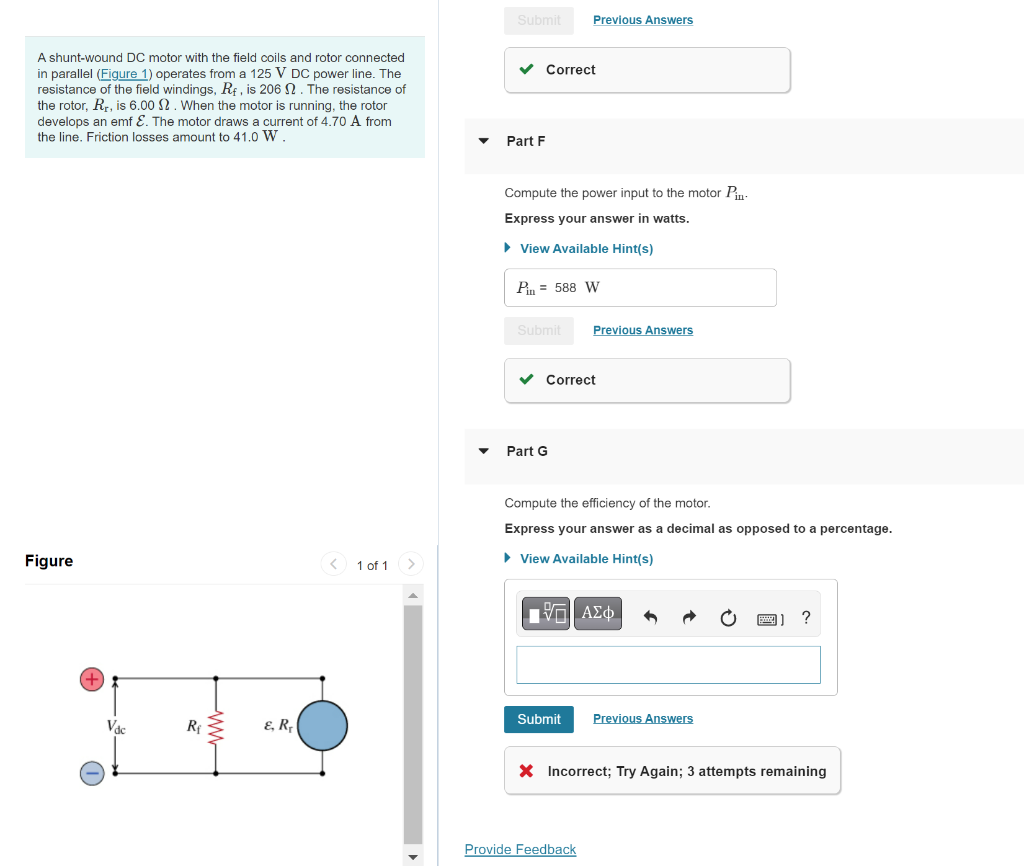

Submit Previous Answers Correct A shunt-wound DC motor with the field coils and rotor connected in parallel (Figure 1) operates from a 125 V DC power line. The resistance of the field windings, Rf, is 206 2. The resistance of the rotor, Rr, is 6.00 2. When the motor is running, the rotor develops an emf E. The motor draws a current of 4.70 A from the line. Friction losses amount to 41.0 W. Part F Compute the power input to the motor P... Express your answer in watts. View Available Hint(s) Pin = 588 W Submit Previous Answers ✓ Correct Part 6 Compute the efficiency of the motor. Express your answer as a decimal as opposed to a percentage. Figure < 1 of 1 View Available Hint(s) ΠΙ ΑΣΦ E ? + Submit Vdc ER Previous Answers RB X Incorrect; Try Again; 3 attempts remaining D Provide Feedback
