Question 1: Assuming that each light bulb has a resistance of 1.2 olims and the battery provides 9 volts, what is the Yo

Post by answerhappygod »

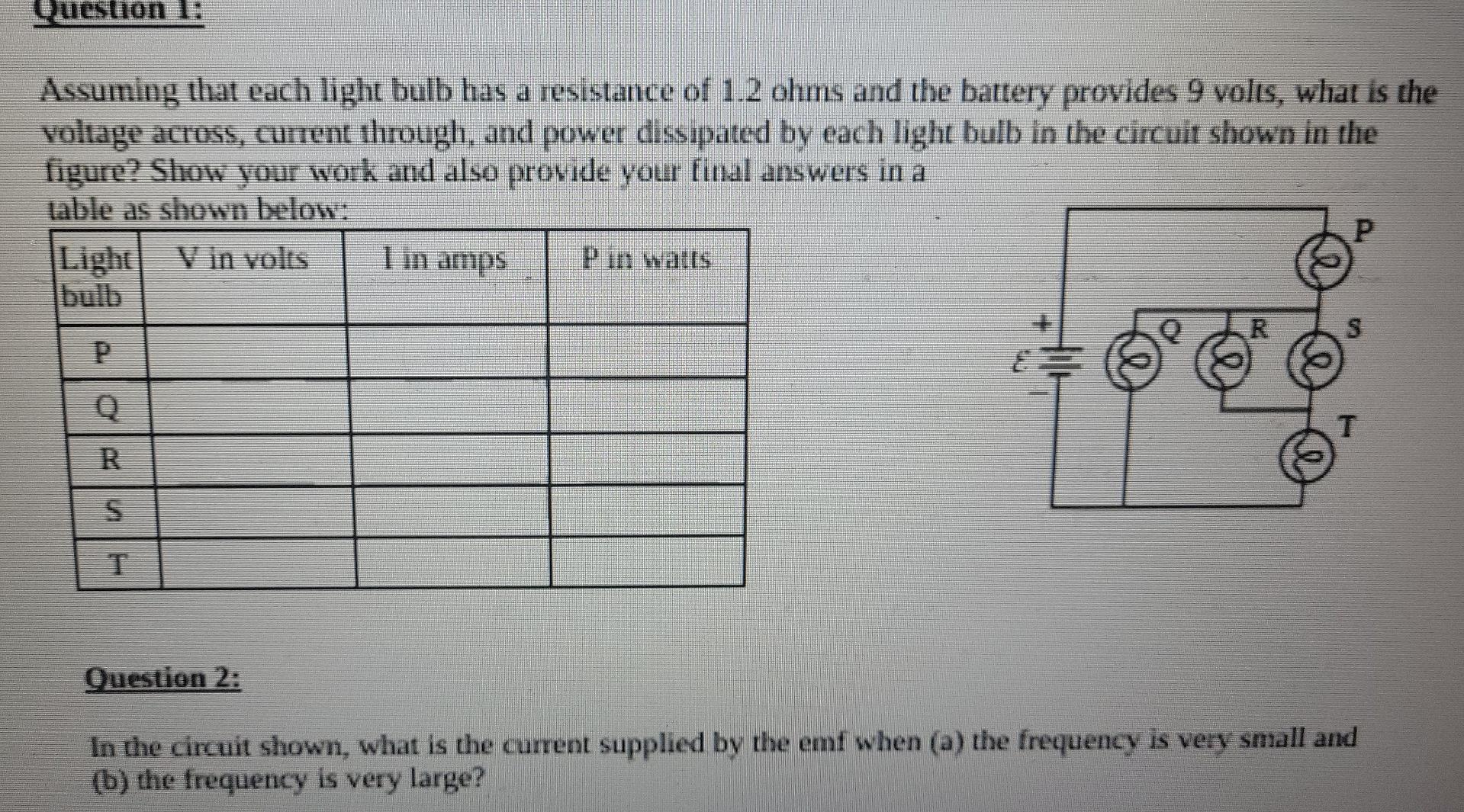

Question 1 Assuming That Each Light Bulb Has A Resistance Of 1 2 Olims And The Battery Provides 9 Volts What Is The Yo 1
Question 1 Assuming That Each Light Bulb Has A Resistance Of 1 2 Olims And The Battery Provides 9 Volts What Is The Yo 1 (518.24 KiB) Viewed 49 times
Question 1: Assuming that each light bulb has a resistance of 1.2 olims and the battery provides 9 volts, what is the Yoliage across, current through, and power dissipated by each light bulb in the circuit shown in the figure? Show your work and also provide your final answers in a table as shown below: Light V in volts I in arnps P in watts bulb R р P S T R S T Question 2: In the circuit shown, what is the current supplied by the emf when (a) the frequency is very small and (b) the frequency is very large?
