Part A Part of a single rectangular loop of wire with dimensions shown in the (Figure 1) is situated inside a region of

[answerhappygod]

Part A Part Of A Single Rectangular Loop Of Wire With Dimensions Shown In The Figure 1 Is Situated Inside A Region Of 1 (27.58 KiB) Viewed 30 times

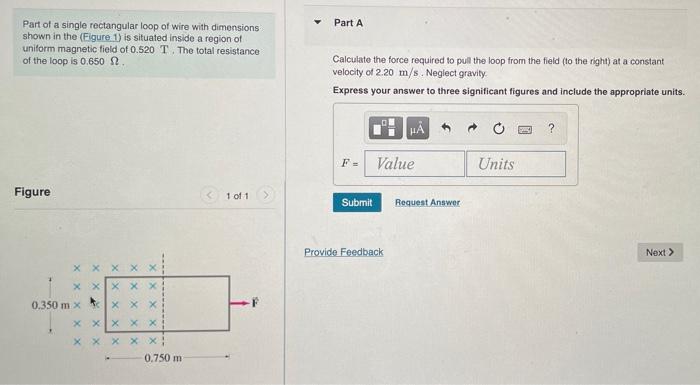

Part A Part of a single rectangular loop of wire with dimensions shown in the (Figure 1) is situated inside a region of uniform magnetic field of 0.520 T. The total resistance of the loop is 0.650 Calculate the force required to pull the loop from the field to the right) at a constant velocity of 2.20 m/s. Neglect gravity Express your answer to three significant figures and include the appropriate units. HÅ. ? F- Value Units Figure 1 of 1 > Submit Request Answer Provide Feedback Next > X X X X X + X X X X X 0.350 m X X X X x x x x x ! X X X X X 0.750 m
