QA3- The coupling shown in Figure 3 is constructed from steel of rectangular cross section and is designed to transmit a

Post by answerhappygod »

Qa3 The Coupling Shown In Figure 3 Is Constructed From Steel Of Rectangular Cross Section And Is Designed To Transmit A 1
Qa3 The Coupling Shown In Figure 3 Is Constructed From Steel Of Rectangular Cross Section And Is Designed To Transmit A 1 (72.59 KiB) Viewed 57 times
resolve this pls with good handwritten

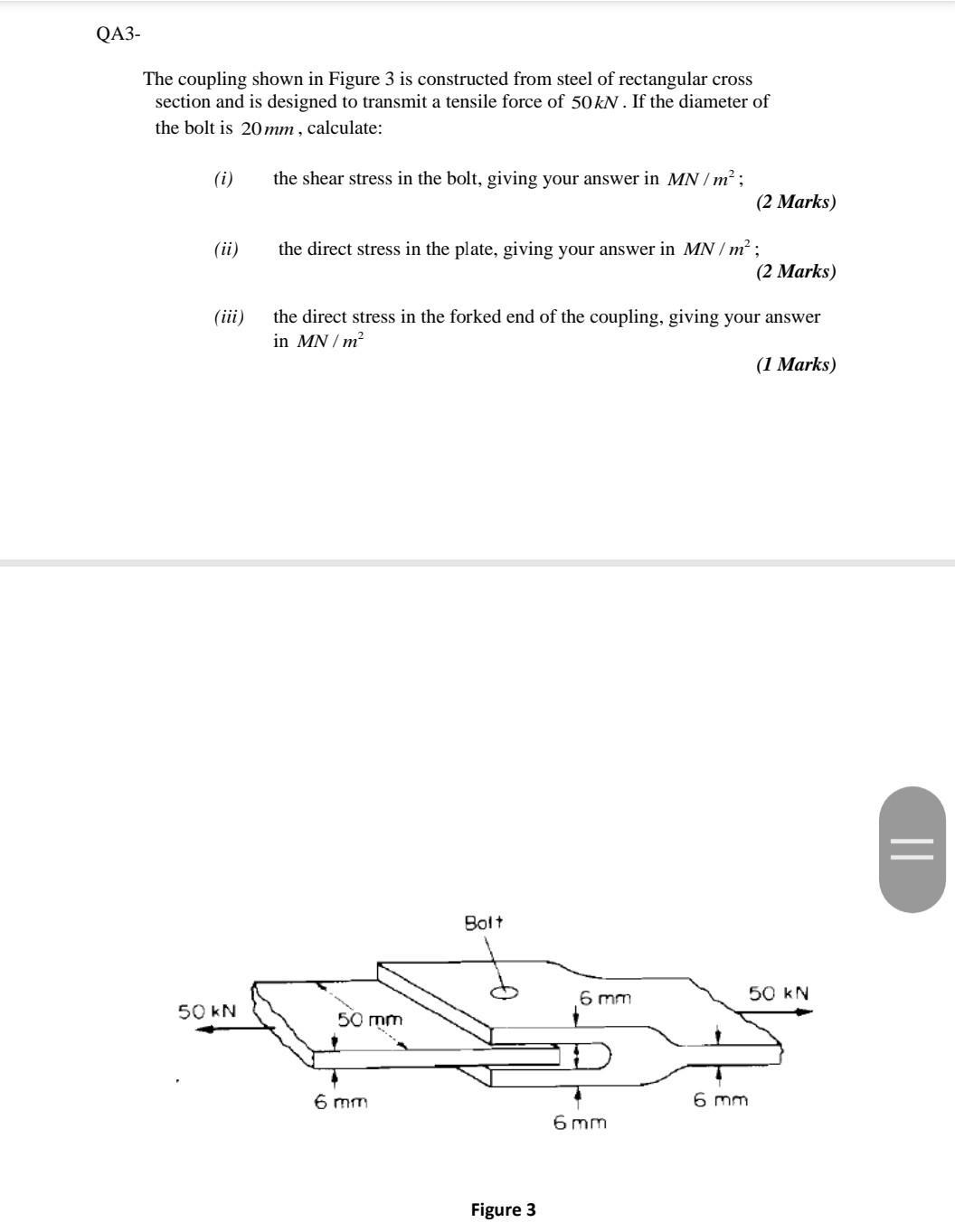

QA3- The coupling shown in Figure 3 is constructed from steel of rectangular cross section and is designed to transmit a tensile force of 50 kN. If the diameter of the bolt is 20 mm , calculate: (i) the shear stress in the bolt, giving your answer in MN/m²; (2 Marks) the direct stress in the plate, giving your answer in MN / m²; (2 Marks) (iii) the direct stress in the forked end of the coupling, giving your answer in MN / m² (1 Marks) II Boit 6 mm 50 KN 50 KN 50 mm 6 mm 6 mm 6mm Figure 3
