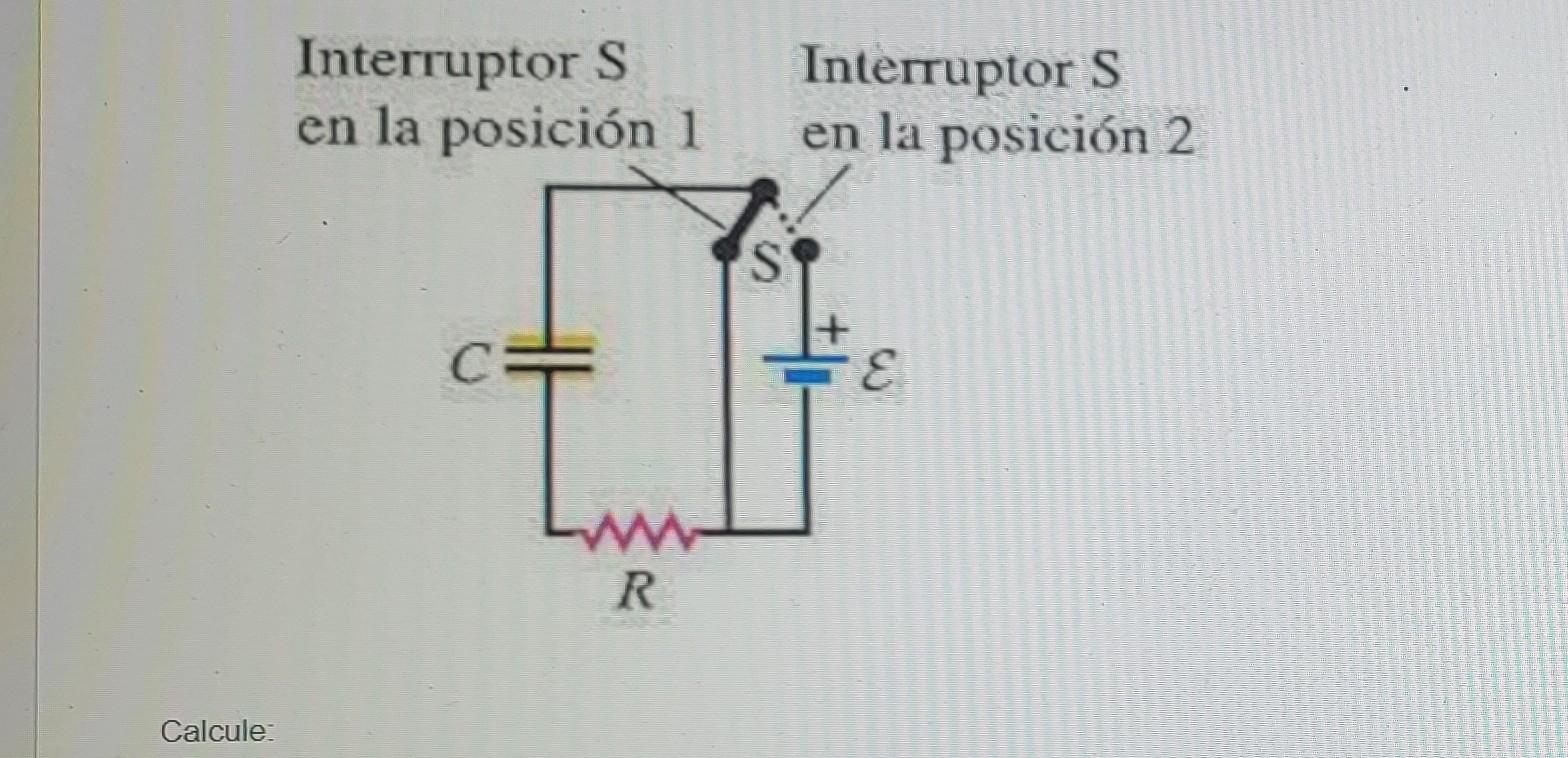

Interruptor S En La Posicion 1 Interruptor S En La Posicion 2 S C E I Lun R Calcule 1 (149.39 KiB) Viewed 52 times
initially the capacitor is discharged and the switch S is in position 1 then the switch is brought to position 2, so that the capacitor starts to charge when the switch has been in position 2 for 10.0ms it is brought back to position 1 for the capacitor to start discharging
a. the capacitor charge
b. the potential difference between the ends of the resistor and the capacitor immediately before the switch is moved back from position 2 to position 1.
c. the potential differences between the ends of the resistor and the capacitor immediately after the switch is moved back from position 2 to 1
d. the capacitor charge 10.0 ms after the switch is returned from position 2 to position 1
Interruptor S en la posición 1 Interruptor S en la posición 2 S C E I Lun R Calcule:
