- Rc 3 500 S2 R V Cc Dax V Bpc 200 18 K92 Bb 2 5 V Figure 3 The Transistor Has The Following Ratings Pd Max 650 Mw 1 (27.83 KiB) Viewed 26 times
RC 3 500 S2 R. V cc Dax V + Bpc = 200 .18 k92 BB 2.5 V Figure 3 The transistor has the following ratings: PD(max) 650 mW
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
RC 3 500 S2 R. V cc Dax V + Bpc = 200 .18 k92 BB 2.5 V Figure 3 The transistor has the following ratings: PD(max) 650 mW

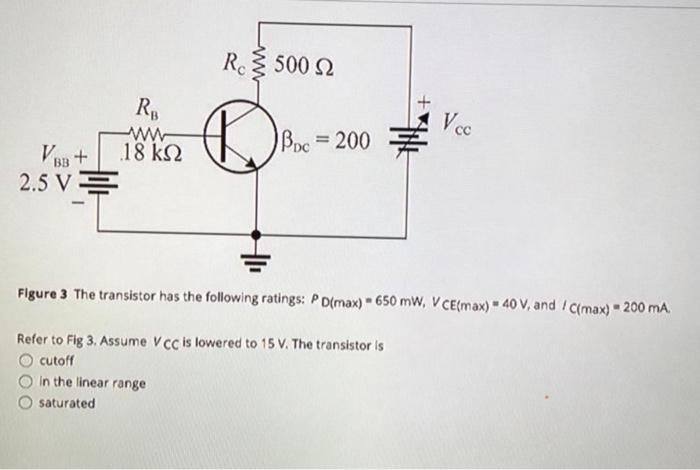

RC 3 500 S2 R. V cc Dax V + Bpc = 200 .18 k92 BB 2.5 V Figure 3 The transistor has the following ratings: PD(max) 650 mW, V CE(max) - 40 V, and I clmax) - 200 mA. Refer to Fig 3. Assume V cc is lowered to 15V. The transistor is O cutoff In the linear range saturated
