2) The system shown in in equilibrium. A mass of 225 kg hangs from the end of the strut, which is connected by a hinge t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2) The system shown in in equilibrium. A mass of 225 kg hangs from the end of the strut, which is connected by a hinge t

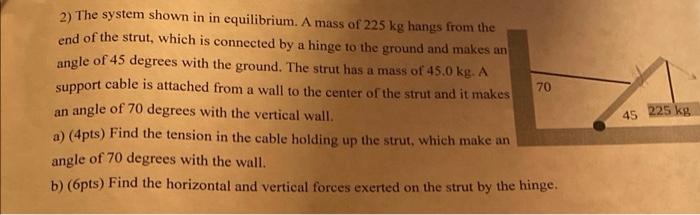

2) The system shown in in equilibrium. A mass of 225 kg hangs from the end of the strut, which is connected by a hinge to the ground and makes an angle of 45 degrees with the ground. The strut has a mass of 45.0 kg. A 70 support cable is attached from a wall to the center of the strut and it makes angle of 70 degrees with the vertical wall. a) (4pts) Find the tension in the cable holding up the strut, which make an angle of 70 degrees with the wall. b) (6pts) Find the horizontal and vertical forces exerted on the strut by the hinge. an 45 225 kg
